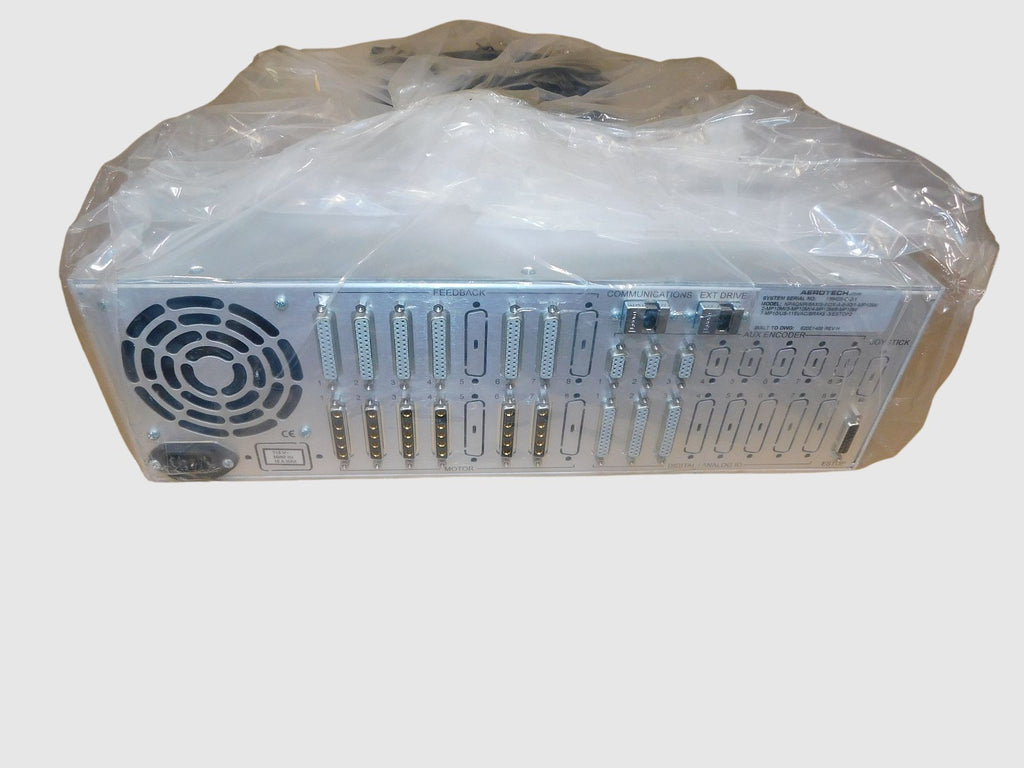

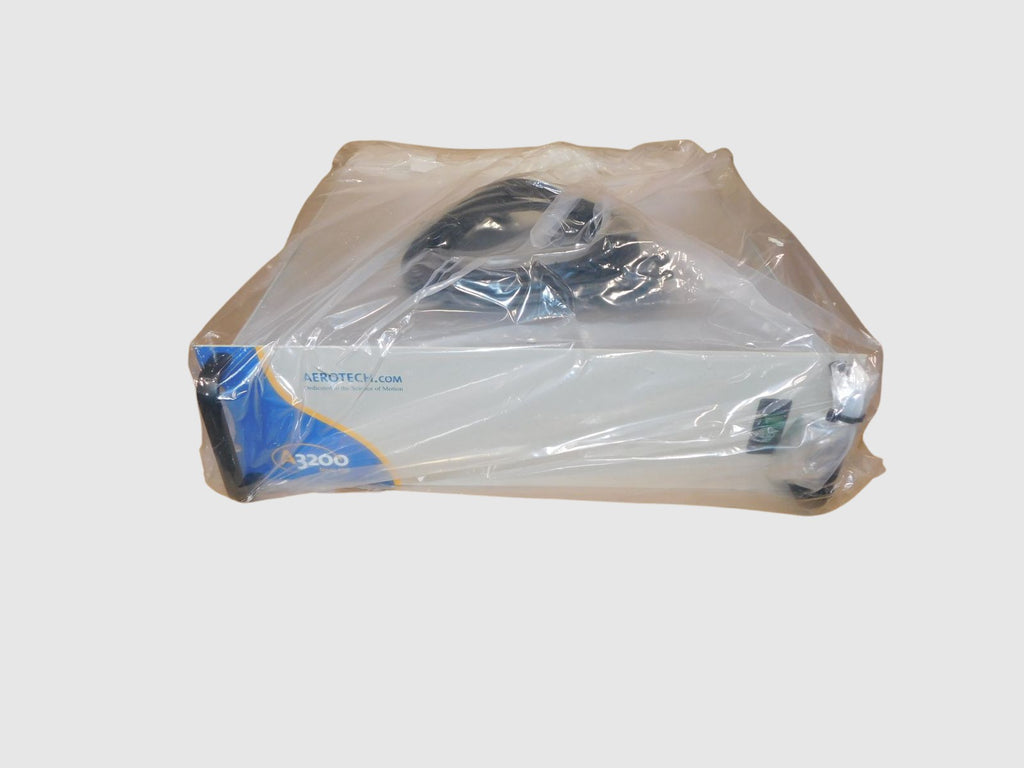

Eight-axis rack with 80 VDC bus; up to 1000 watts

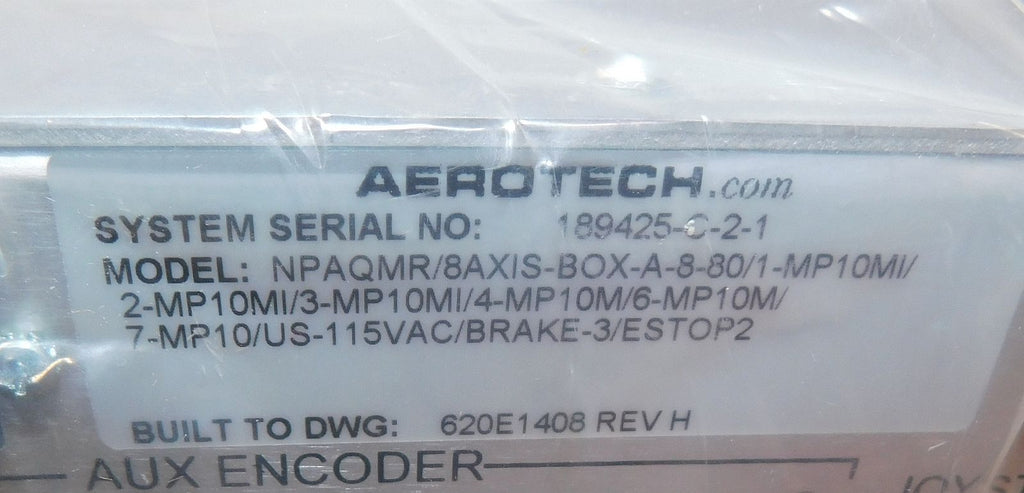

SN: 189425-C-2-1

NPAQMR/8AXIS-BOX-A-1-80

(3) MP10MI--Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1) and I/O option

(2) MP10M--Digital PWM amplifier, 10 A peak, 5 A continuous; x4096 MXU(1)

(1)MP10-Digital PWM amplifier, 10 A peak, 5 A continuous

Brake-3--Axis 3 wired for 24 V, 1 A brake (amp must have “I” or “MI” option)

ESTOP-2--Controller stops motion, then disables servo control. Internal positive guided relay with monitor
contact disconnects AC power source from motor. Operator risk assessment is the responsibility of
the end user or integrator.
-ESTOP2 Same as ESTOP1 but uses two relays

New
