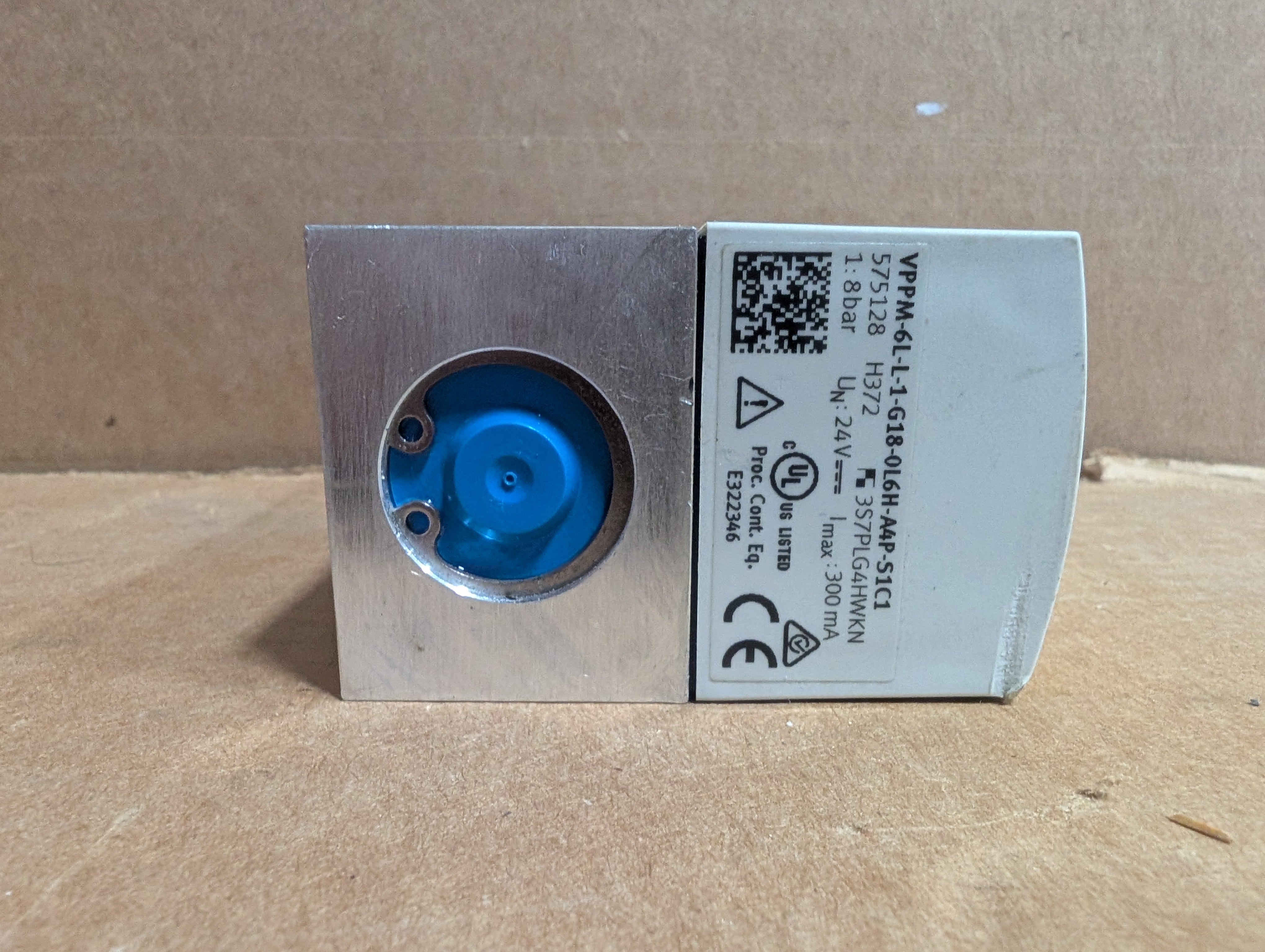

Technical Data Proportional pressure control valve VPPM-6L-L-1-G18-0L6H-A4P-S1C1

• Nominal width pressurization6 mm
• Exhaust nominal width4.5 mm
• Actuation typeElectrical
• Sealing principleSoft
• Mounting positionAny
• Structural designPilot-controlled diaphragm regulator
• Short-circuit protectionFor all electrical connections
• Safety instructionsVPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
• Symbol00995303
• Reverse polarity protectionfor all electrical connections
• Reset methodMechanical spring
• Type of controlPiloted
• Valve function3-way proportional pressure control valve

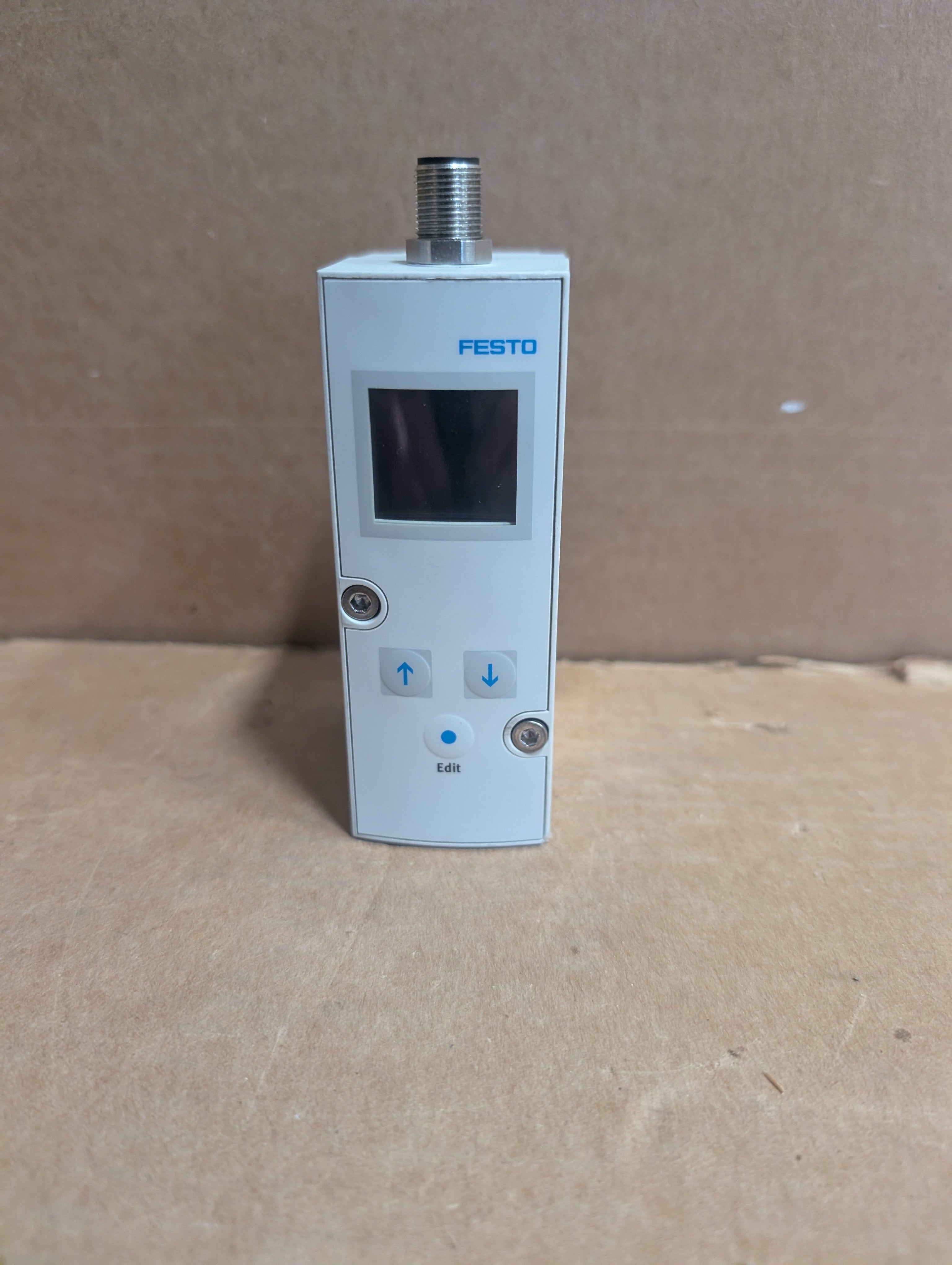

• Display typeBacklit LCD
• Pressure regulation range MPa0.006 MPa ... 0.6 MPa
• Pressure regulation range0.06 bar ... 6 bar
• Inlet pressure 10 bar ... 8 bar
• Inlet pressure 1 MPa0 MPa ... 0.8 MPa
• Max. pressure hysteresis0.03 bar
• Normal nominal flow rate (normalized to DIN 1343)900 l/min
• DC operating voltage range21.6 V ... 26.4 V
• Max. current consumption300 mA
• Duty cycle100%
• Max. electrical power consumption7 W
• Residual ripple10%
• Analog output signal range4 - 20 mA
• Precision analog output in ± %FS2 %FS
• Analog input signal range4 - 20 mA
• Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4] Inert gases
• Information on operating and pilot mediaOperation with oil lubrication not possible
• CertificationRCM compliance mark c UL us - Listed (OL)
• KC charactersKC-EMV
• CE marking (see declaration of conformity)As per EU EMC directive As per EU RoHS directive
• UKCA marking (see declaration of conformity)To UK RoHS instructions
• Certificate issuing authorityUL E322346
• Corrosion resistance class (CRC)2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Temperature of medium10 °C ... 50 °C
• Degree of protectionIP65
• Ambient temperature0 °C ... 50 °C
• Product weight400 g
• Linearity1 %FS
• Hysteresis0.5 %FS
• Reproducibility0.5 %FS
• Overall accuracy1.25 %FS
• Temperature coefficient0.04 %/K
• Repetition accuracy FS0.5 %

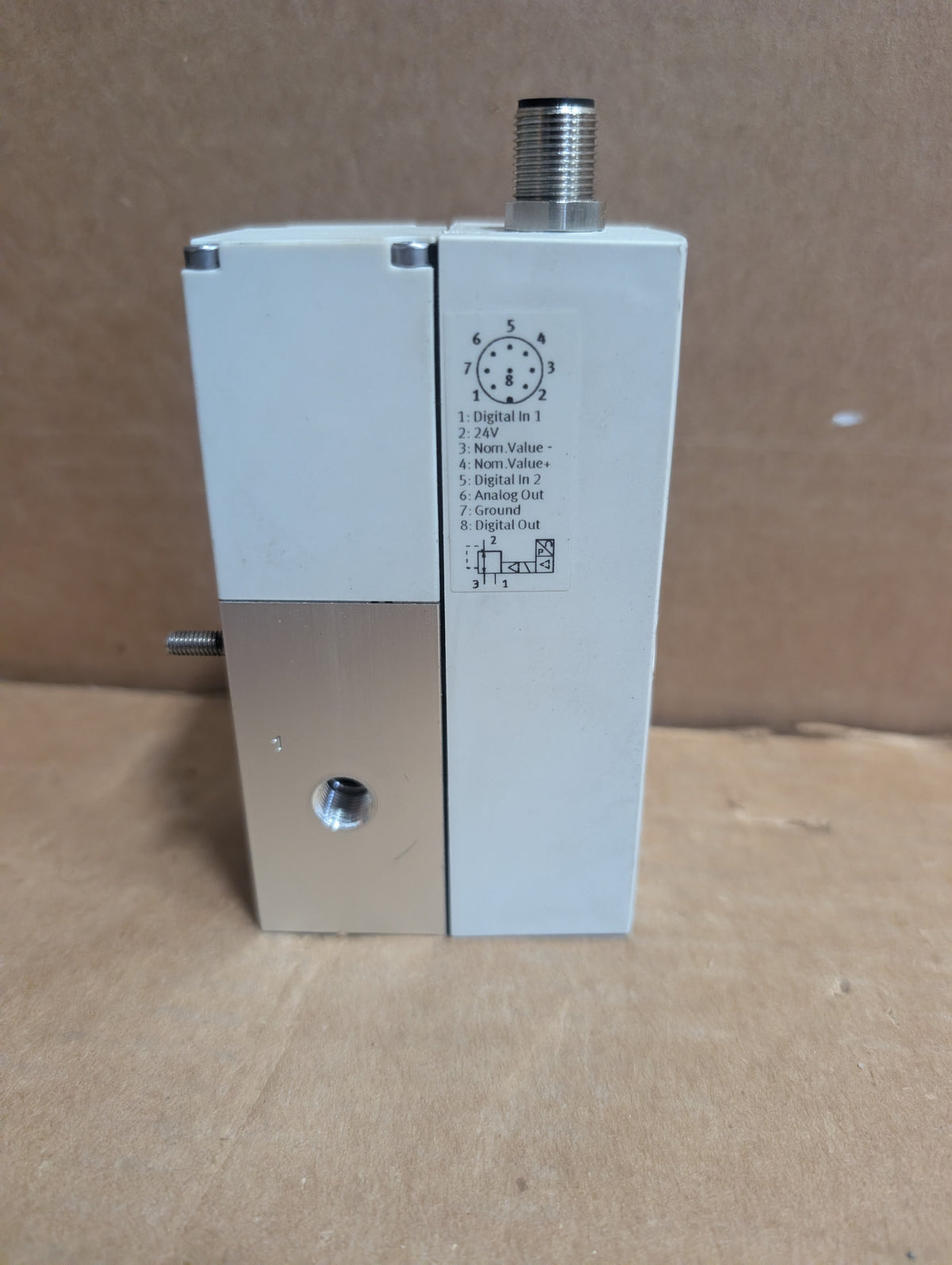

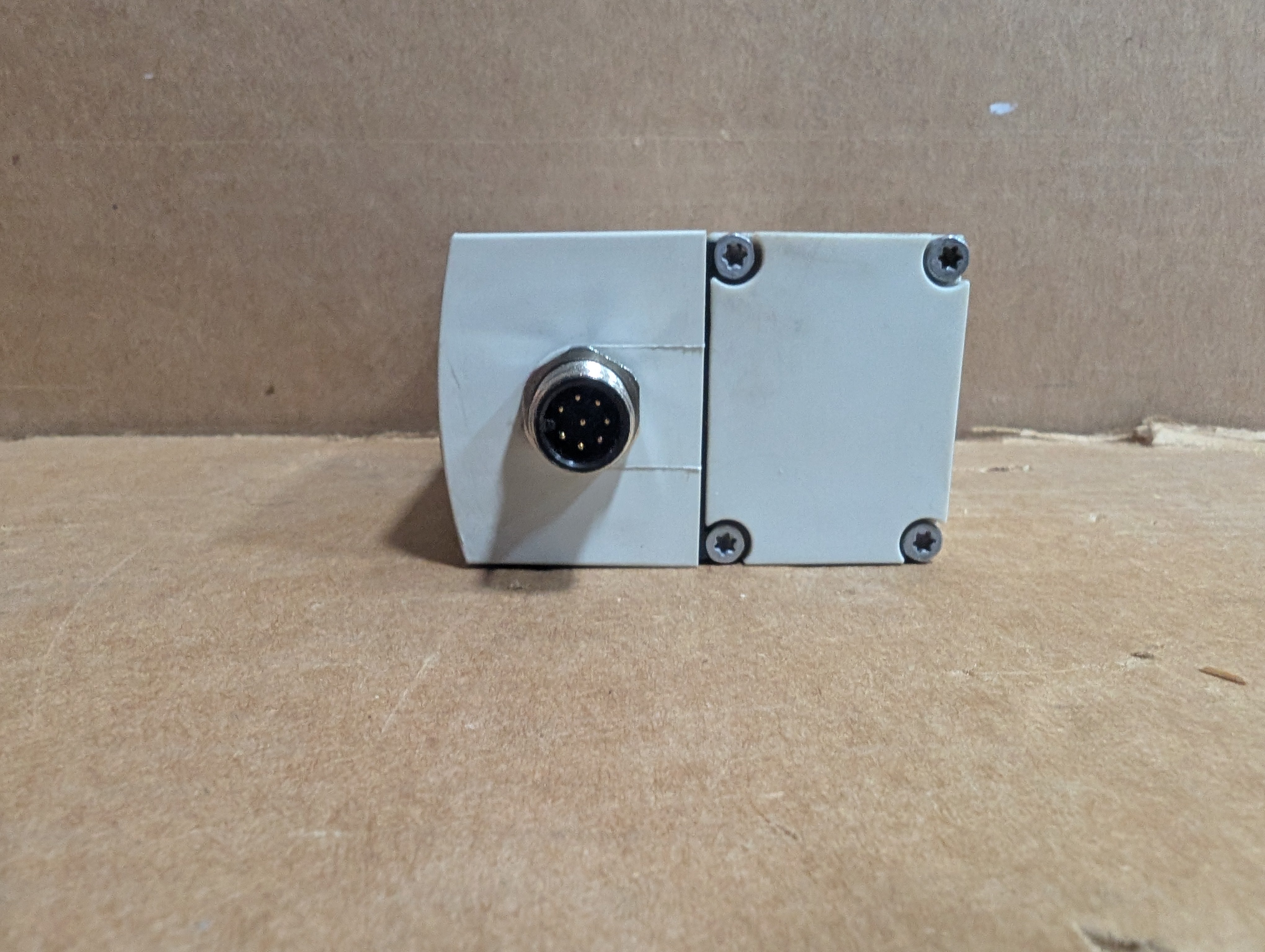

• Electrical connection8-pin M12 Plug

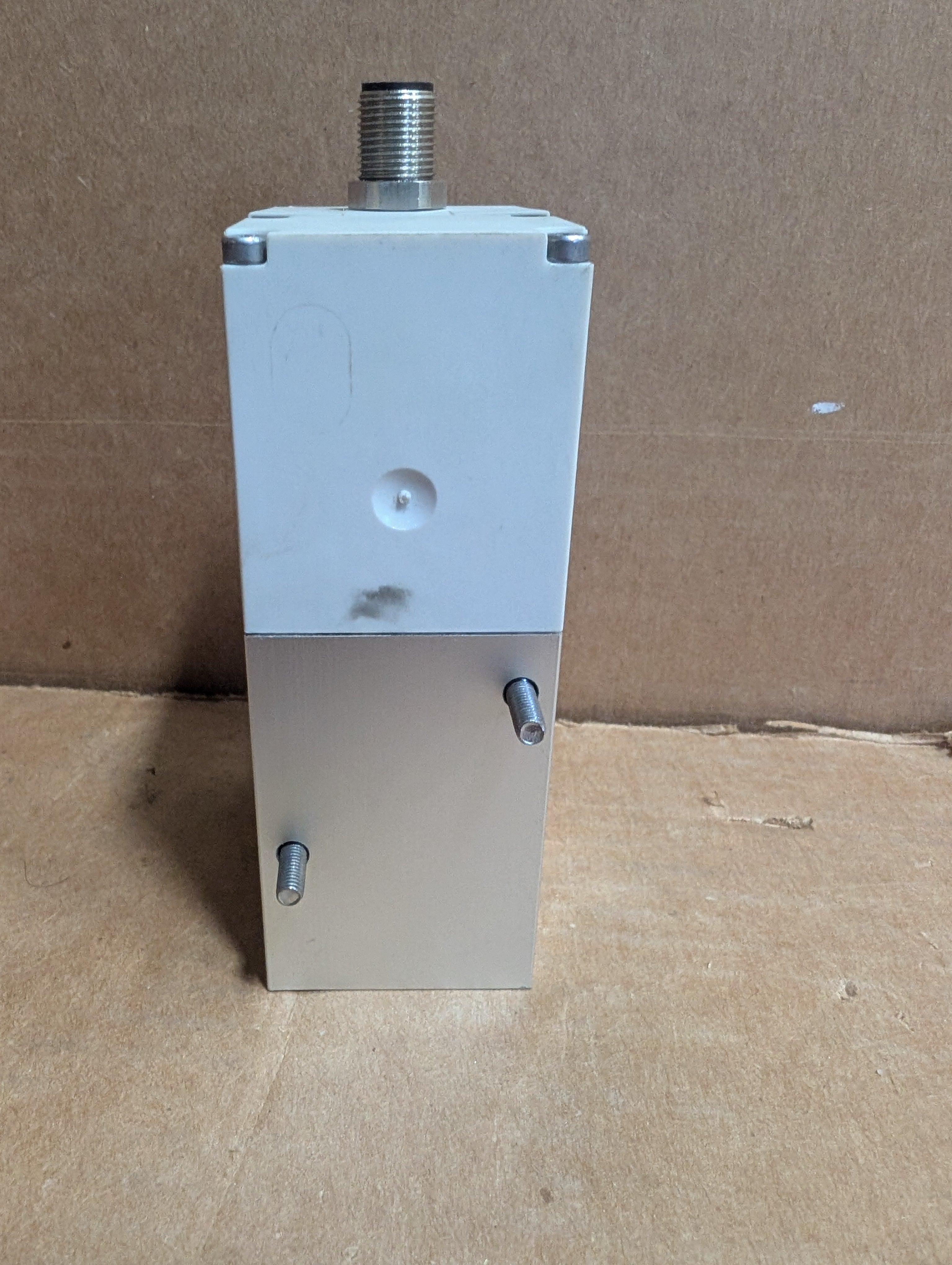

• Type of mountingAlternatively: With through-hole With accessories

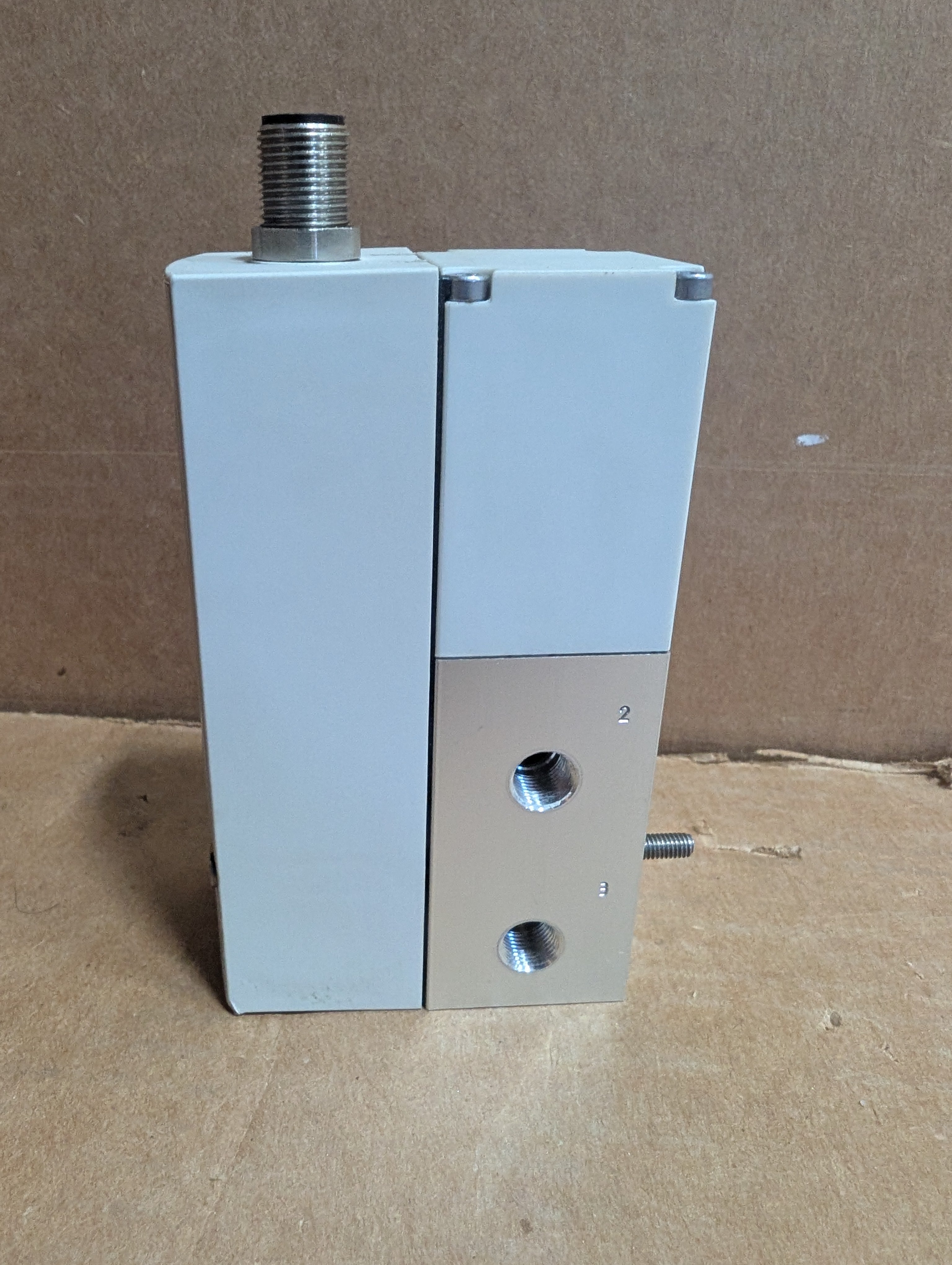

• Pneumatic connection 1G1/8
• Pneumatic connection 2G1/8
• Pneumatic connection 3G1/8
• Note on materialsRoHS compliant
• Housing materialWrought aluminum alloy Anodized
