Description

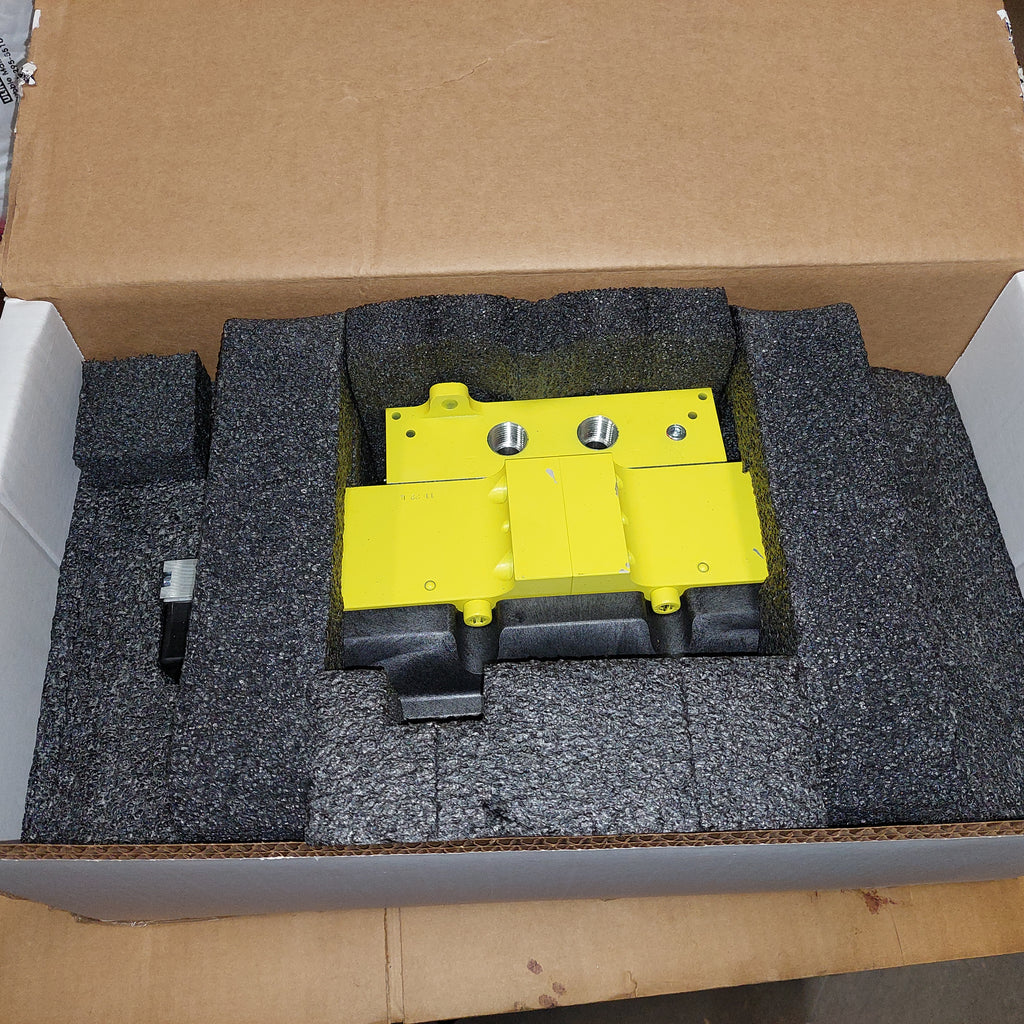

New Factory Opened Factory Box

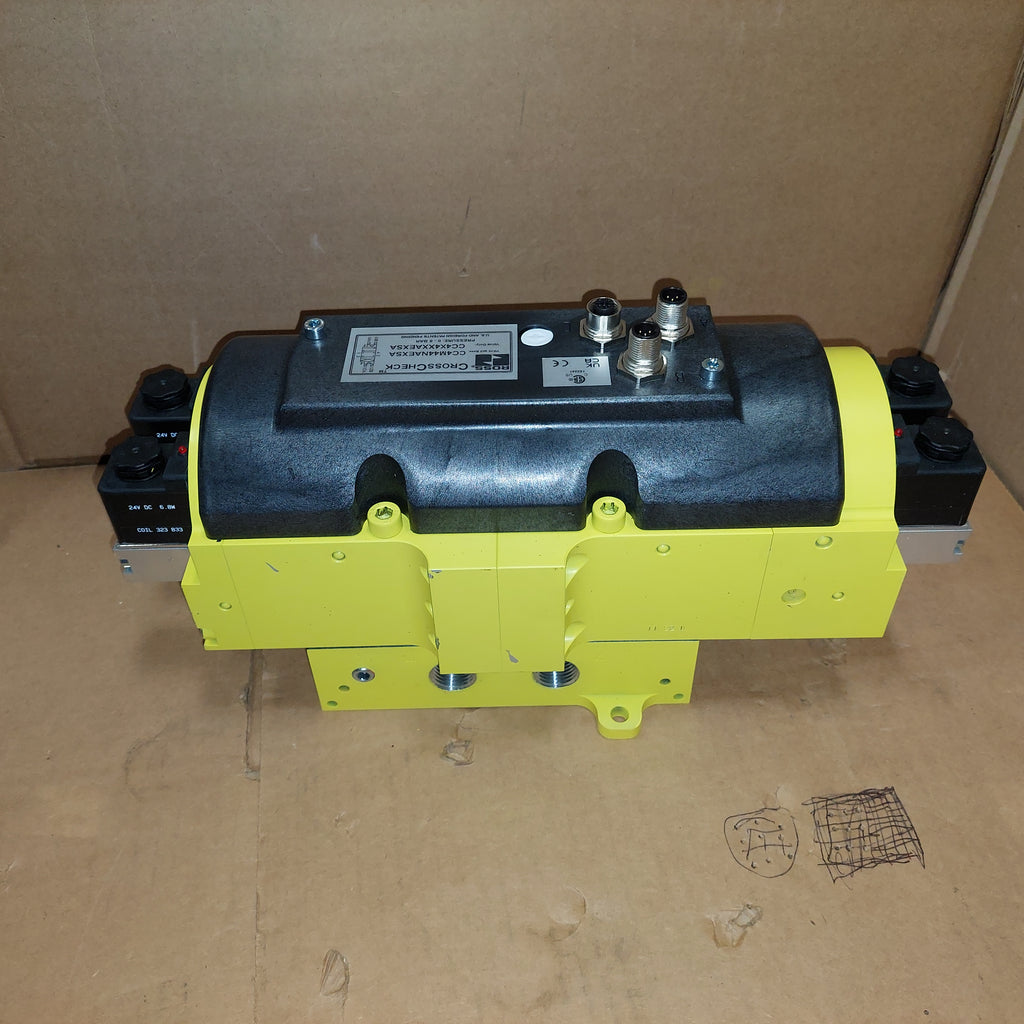

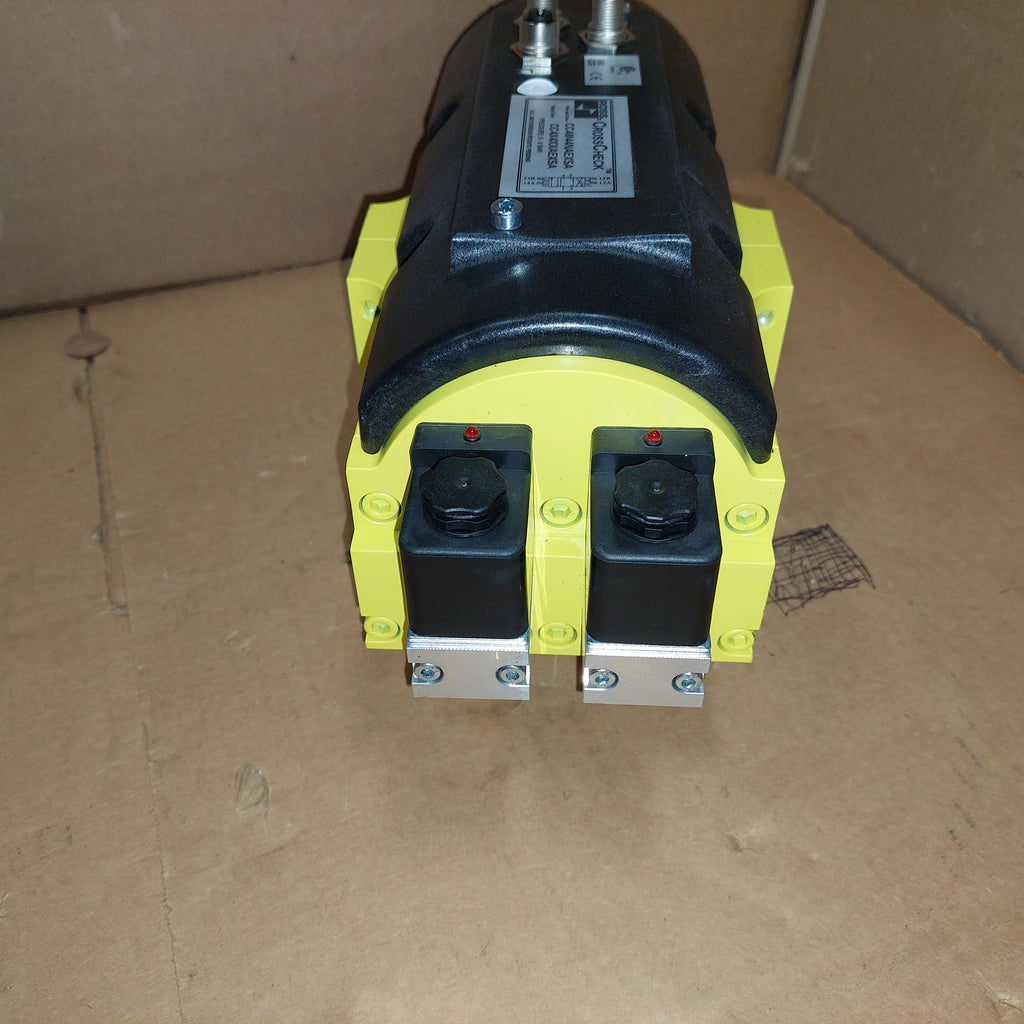

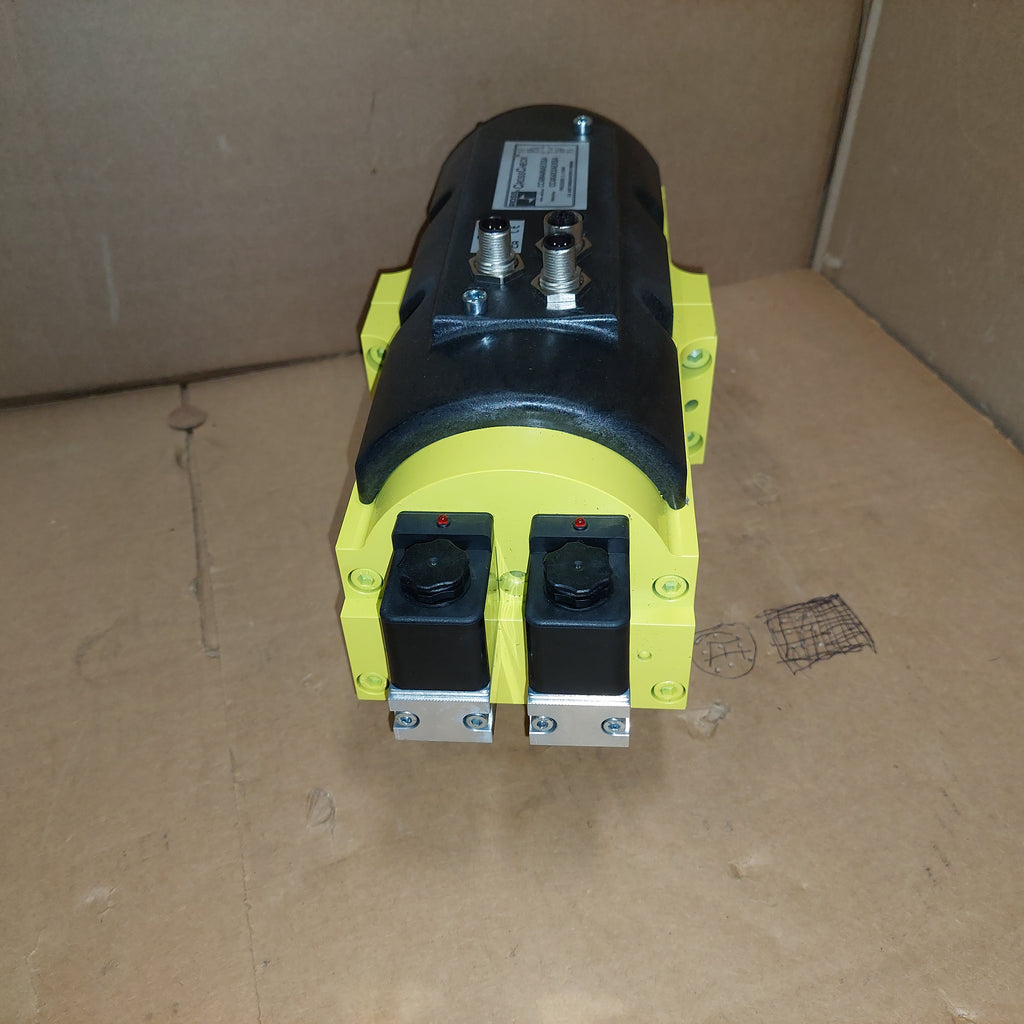

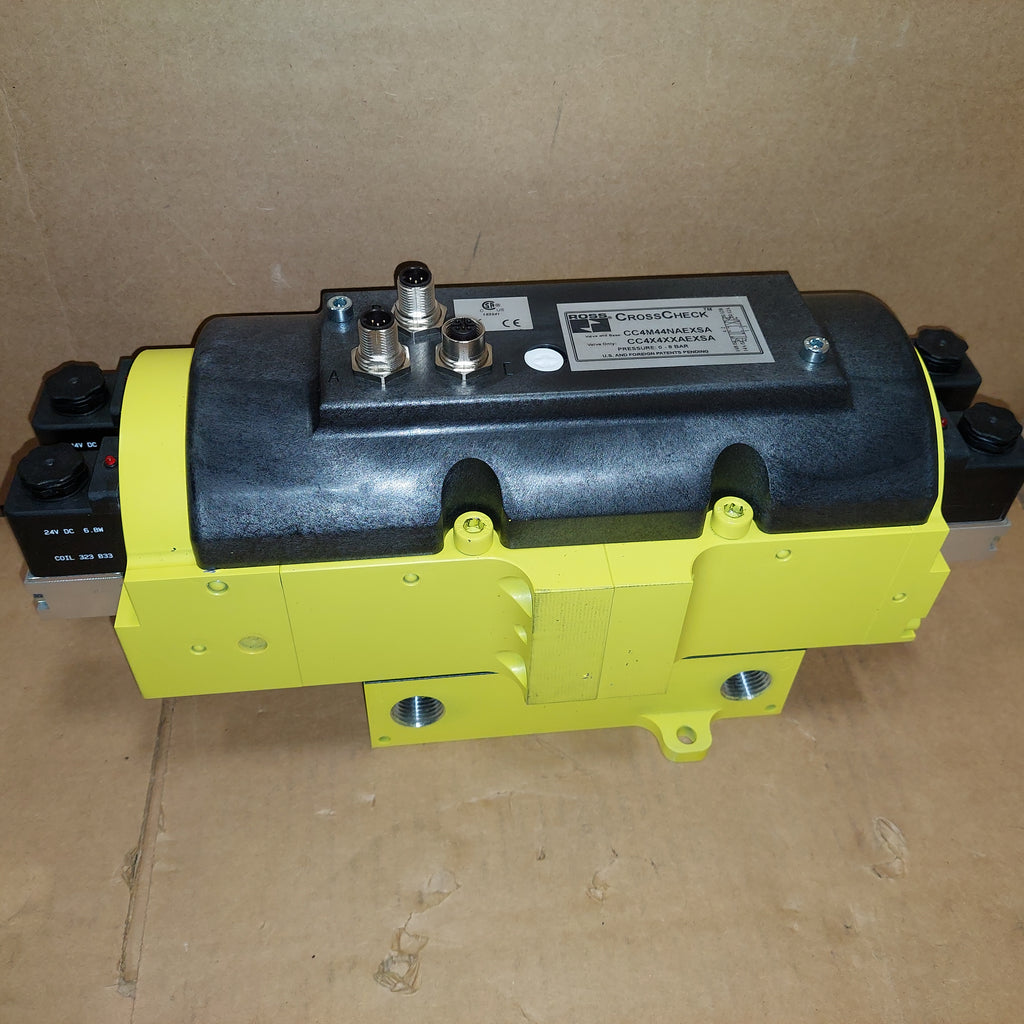

| Description | CC4 Series Double 4/3 Solenoid Valve 1/2" NPT, 24 VDC |
| Valve Type | Safe Cylinder Control and Hold |
| Series | CC4 |
| Construction | Redundant Dual Poppet |
| Valve Function | Dual 4/3 Double Solenoid |
| Default | Closed Center |
| Actuation | Electrical |
| Pilot Type | Internal/External |
| Pressure Release Type | Manual |
| Voltage | 24 VDC |
| Power Consumption | 3.5 watts |

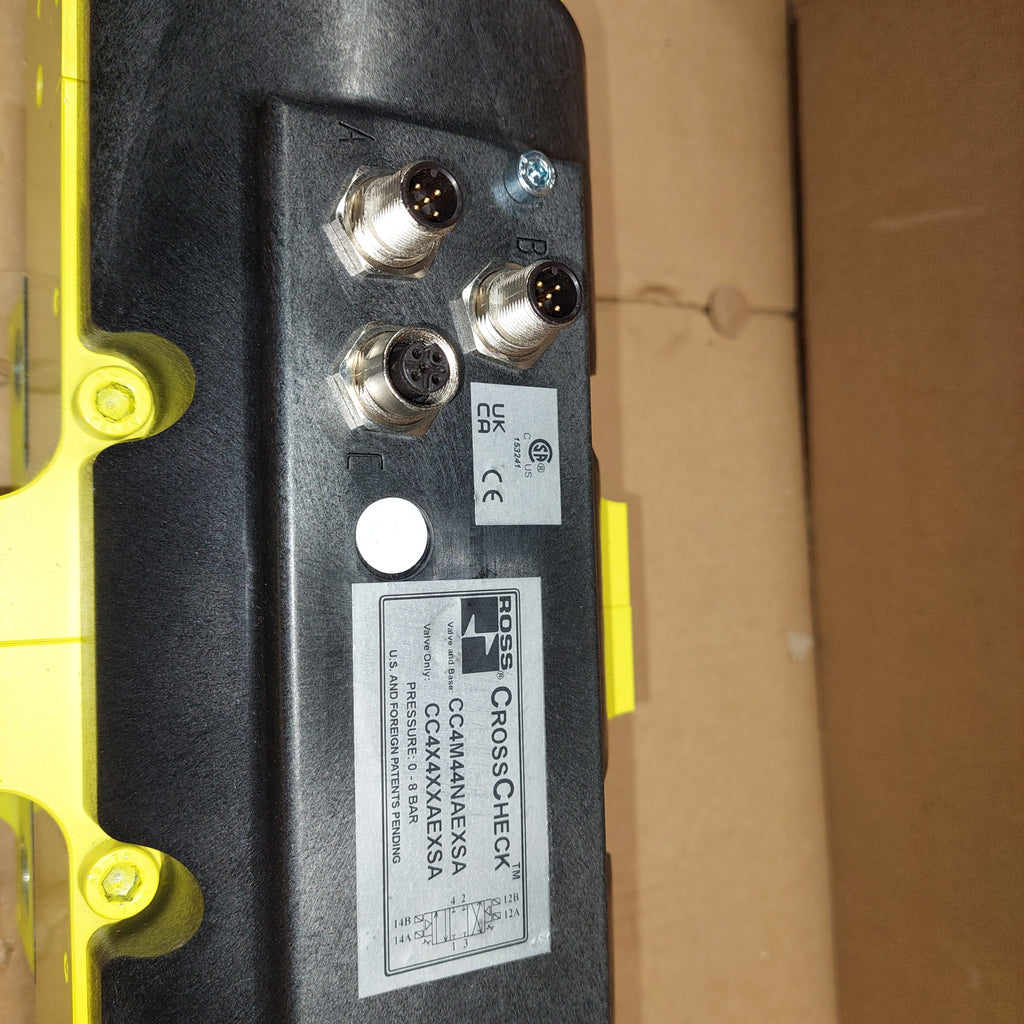

| Electrical Connection | 5-pin M12 |

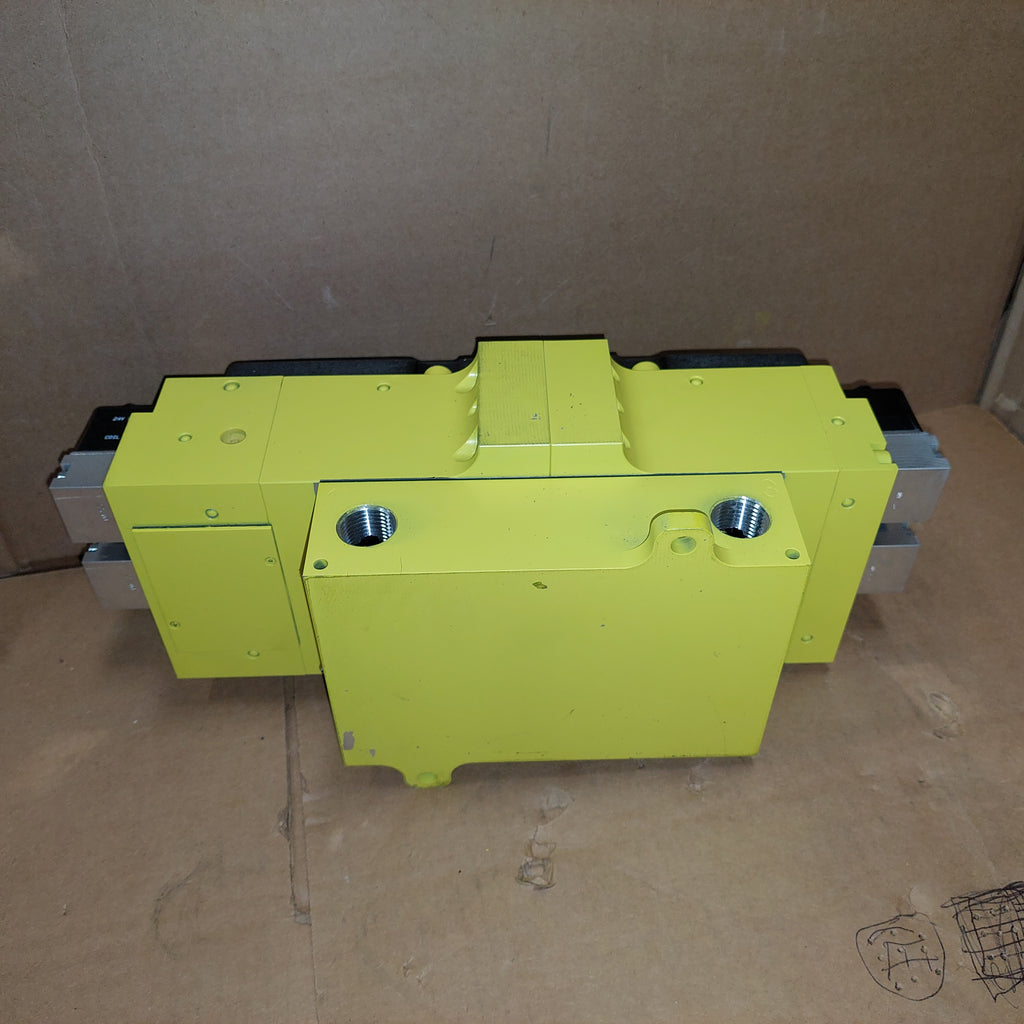

| Mounting | Base Mount |
| Ambient Temperature Range | 40 to 120 F (4 to 50 C) |
| Ambient Temperature Range (Celsius) | 4 to 50 |
| Media Temperature Range | 40 to 175 F (4 to 80 C) |
| Media Temperature Range (Celsius) | 4 to 80 |
| Flow Media | Compressed air according to ISO 8573-1 Class 7:4:4 |
| Pilot Supply | Internal or External |
| Operating Pressure | 120 psi (8 bar) |
| Operating Pressure (bar) | 8 |
| Valve Body Material | Cast Aluminum |
| Poppet Material | Acetal and Stainless Steel |
| Seal Material | Buna-N |
| Safety Category | Cat 4 |
| PL Rating | PL e |
| Safety Integrity Level | SIL 3 |
| DGUV Certification | Yes |
| CE Certification | Yes |
| EAC Declaration | Yes |
| CSA/UL Certification | Yes |
| Body Size | 2 |
| Ports 1-2 Flow (Cv) | 1.7 |
| Ports 1-2 Flow (Nl/min) | 1673 |
| Ports 1-2 Flow | 1.7 Cv (1673 Nl/min) |
| Ports 2-1 Flow (Cv) | 1.8 |
| Ports 2-1 Flow (Nl/min) | 1771 |
| Ports 2-1 Flow | 1.8 Cv (1771 Nl/min) |
| Length | 13.61 in (345.7 mm) |
| Length (mm) | 345.7 |
| Width | 5.6 in (142.2 mm) |
| Width (mm) | 142.2 |
| Height | 4.93 in (125.3 mm) |
| Height (mm) | 125.3 |
| Weight | 18.3 lb (8.3 kg) |
| Weight (kg) | 8.3 |
| Thread Type | NPT |
| Port Size | 1/2" |
