Description
Burkert 292575 2" Angle Seat Valve 8801 2100 A 50,0 PFTE VA SODI 316SS

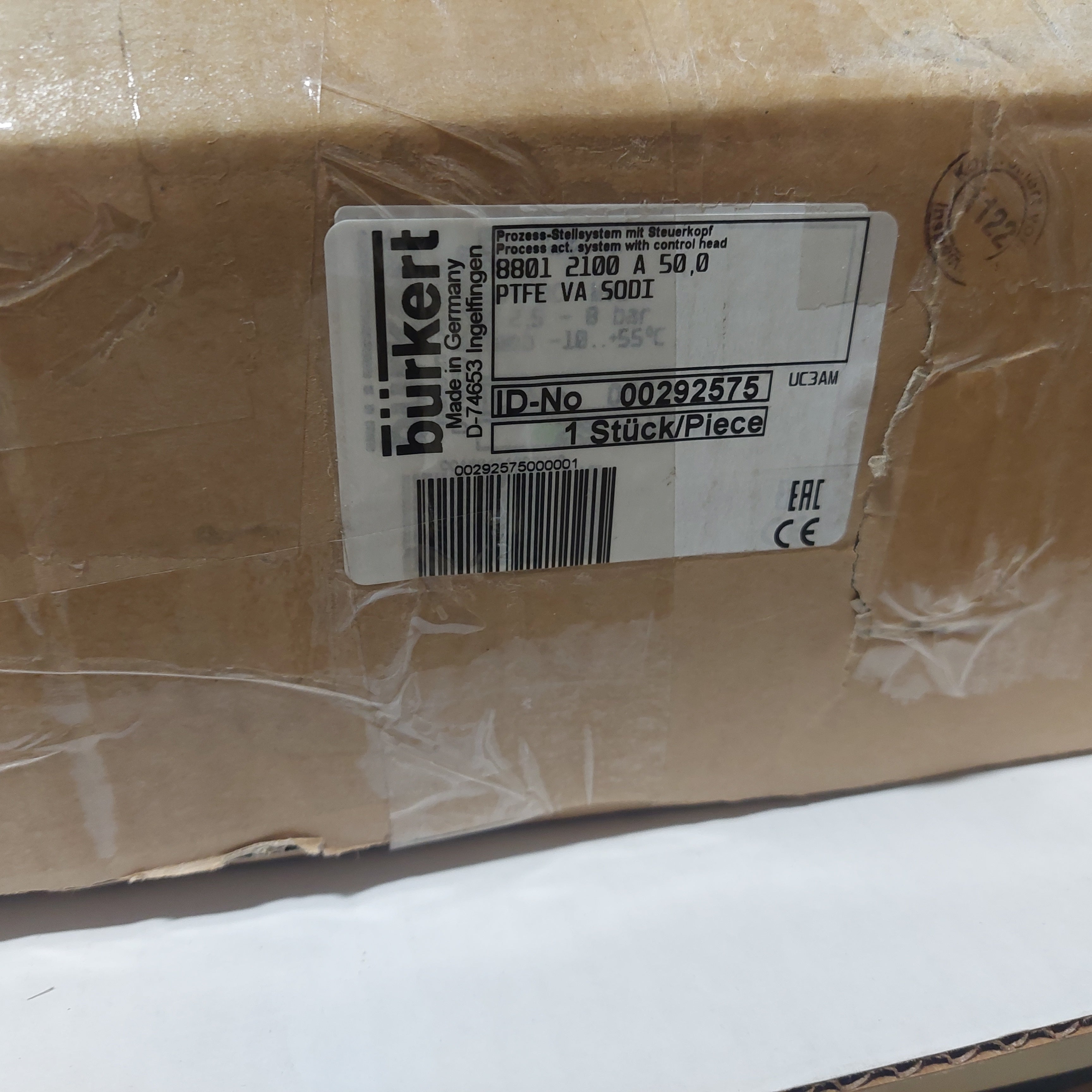

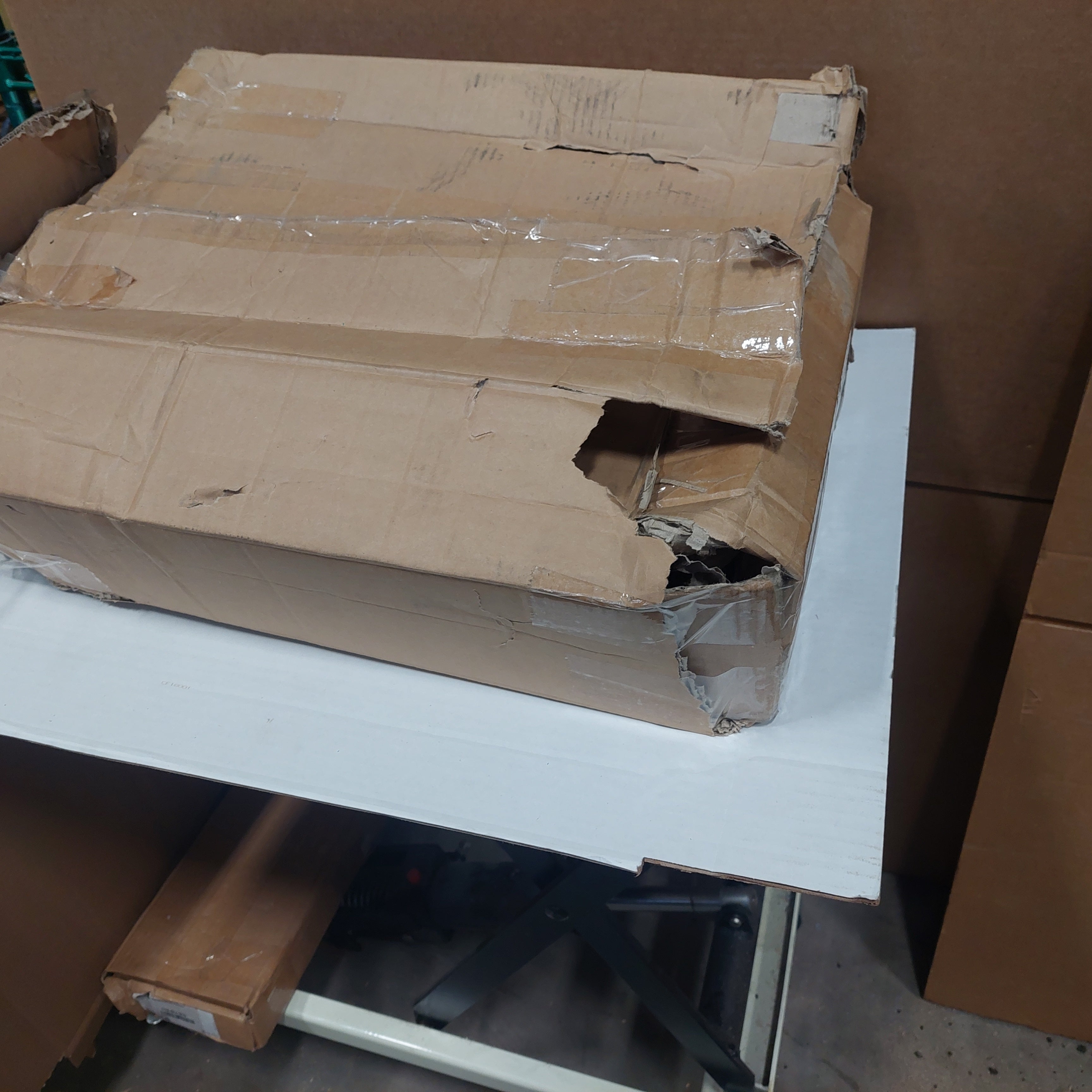

New in open distressed factory box.
$2,160 factory price
Mfg. specs below
|
Typ
8801
|
|
|
Valve type
angle seat valve type 2100
|
|
|
Control type
control head type 8691
|
|
|
Control function
closed by spring force
|
|
|
Paths/positions
2 ways / 2 position
|
|
|
Orifice size
50mm (2")
|
|
|
Seal material
PTFE
|
|
|
Material
stainless steel
|
|
|
Port connection
Weld end 50,8 x 1,65 (2,000" x 0,065") according to ASME BPE, DIN 11866 series C (usable for BS 4825-1)
|
|
|
Port connection P/R
not applicable
|
|
|
Actuator version
Element design actuator
|
|
|
Actuator size
Dm 90 mm
|
|
|
Interface
nipple thread M70 x 2 (standard DN 50)
|
|
|
connection of pilot air
interface element-top and remote sensor to element-actuator
|
|
|
Flange pattern
interface element-Top control and remote sensor to Element-actuator
|
|
|
Form of construction
without
|
|
|
Function
no description
|
|
|
Pneumatic function
single acting DN 3,0
|
|
|
Type of actuator
without valves
|
|
|
Path sensor
without
|
|
|
Supply voltage
VIA BUS
|
|
|
Control
no signal
|
|
|
Electrical connection
MP multipole
|
|
|
Fluid connection
G 1/8 / SS
|
|
|
Operating/configuration
without
|
|
|
Proximity switch
2 positions via linear non-touching distance measuring system
|
|
|
Software acknowledgement
without
|
|
|
Additional function
without
|
|
|
Communication
AS-interface 62 slaves
|
|
|
Mounting
without
|
|
|
Operating
not applicable
|
|
|
Valve block VB1
not inserted
|
|
|
Control function VB1
no information
|
|
|
Valve block VB2
not inserted
|
|
|
Control function VB2
no information
|
|
|
Approval system
without approval
|
|
|
Accessories
without
|
|
|
Body
body OD-tubing long
|
|
|
Mounting-/Delivering var.
packed seal enclosed
|
|
|
Approval component
suitable for use with foods, wetted non-metallic materials are conform to EC Regulation 1935/2004
|
|
|
Approval component
UL listed for USA and Canada cULus
|
