Description

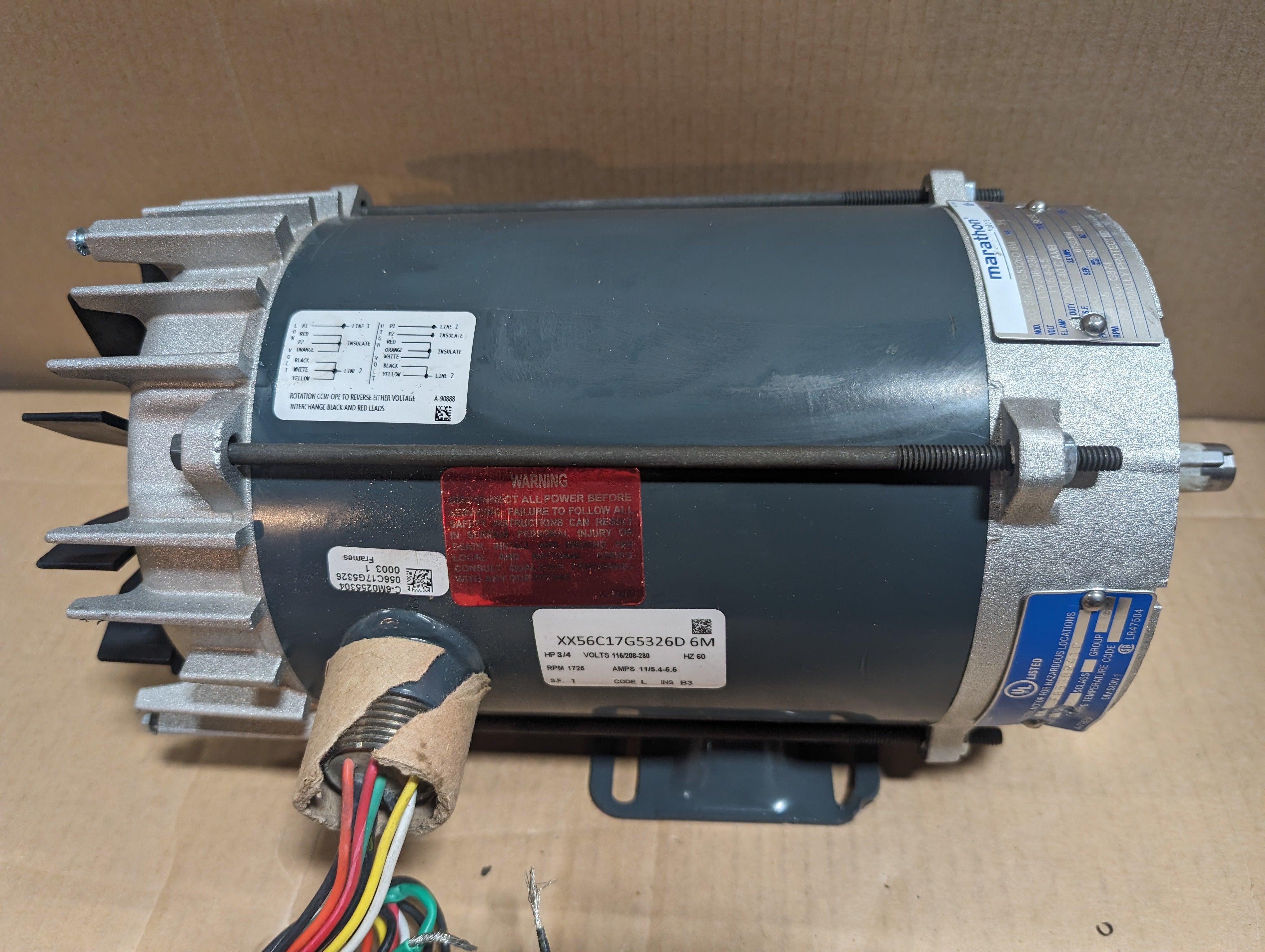

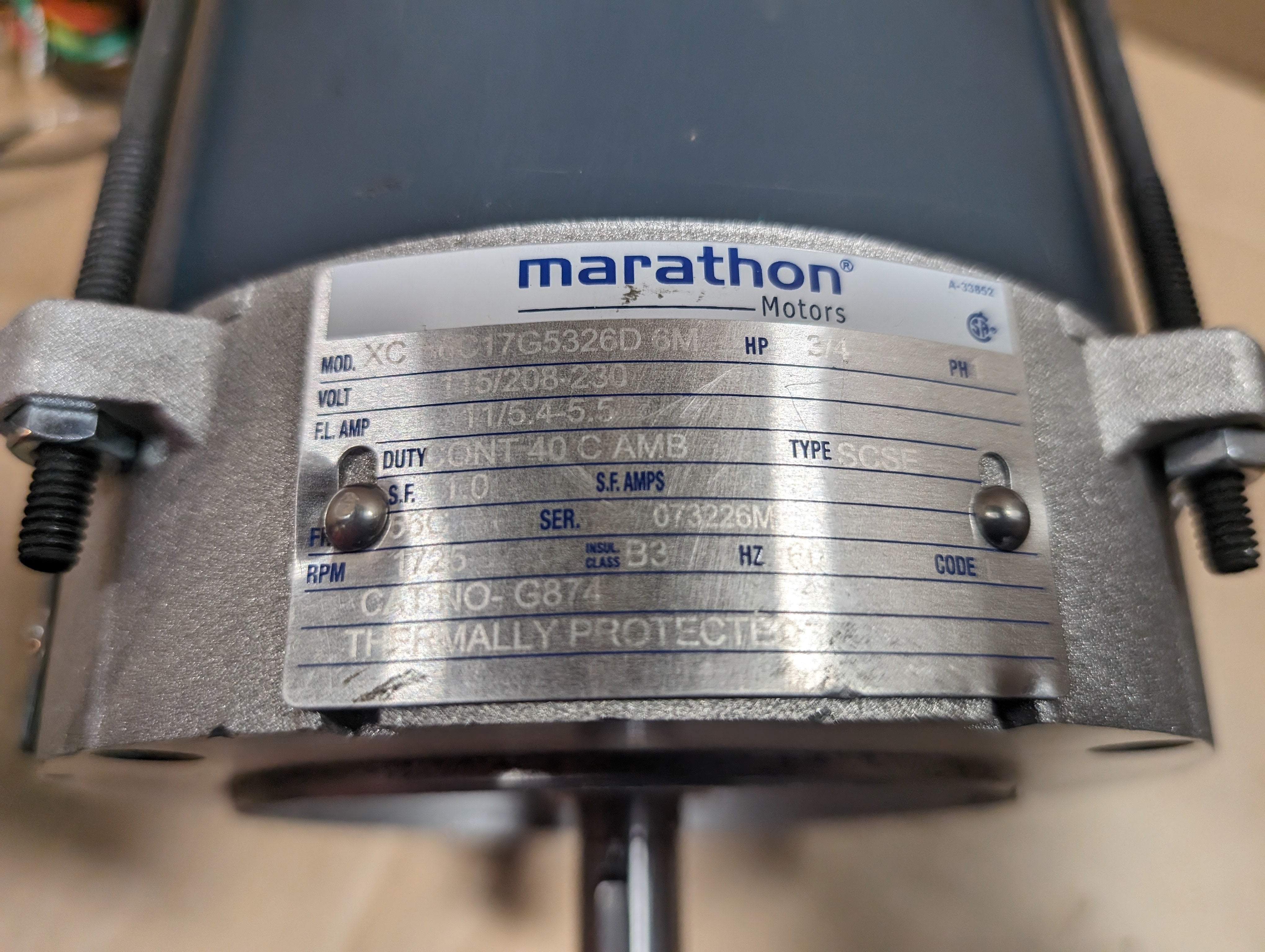

Marathon XC56C17G5326D6M 3/4 HP, 115/208-230, 1725 RPM ExProof G874

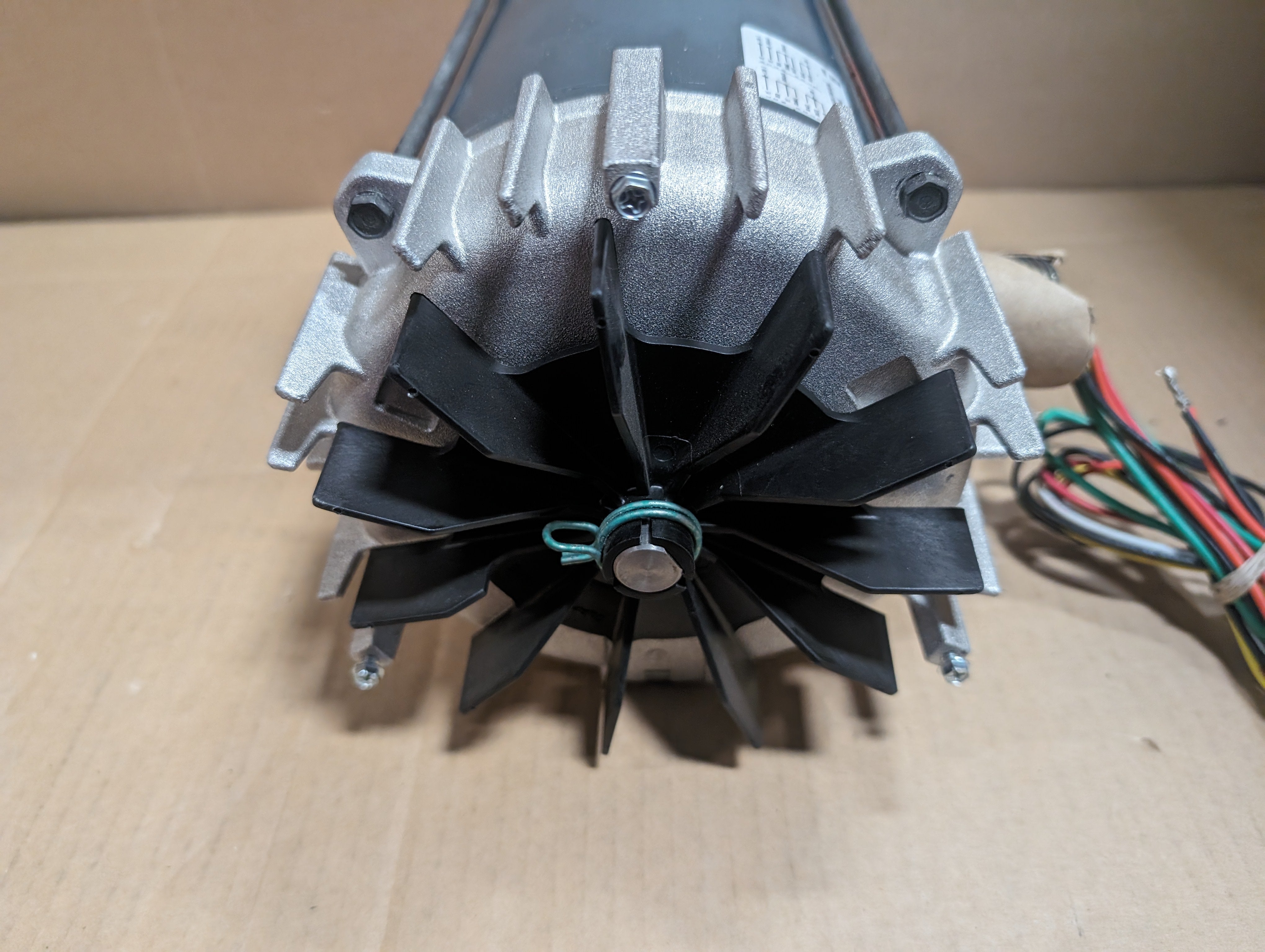

Unused "NO FAN COVER" No Factory Box "USA Seller" Overnight Shipping Available
Base RPM 1725 rpm
Description Keyword 0.75 hp
Drive End Bearing Size 6203
Electrical Type Capacitor Start Induction Run
Enclosure Type EPFC (Explosion Proof Fan Cooled)
Frame Material Rolled Steel
Frame Size 56C
Frequency Rating 60 Hz, 60 Hz
Full Load Current 11.00 / 5.40–5.50 A, 11.0/5.4-5.5 A
Full Load Efficiency 70 %

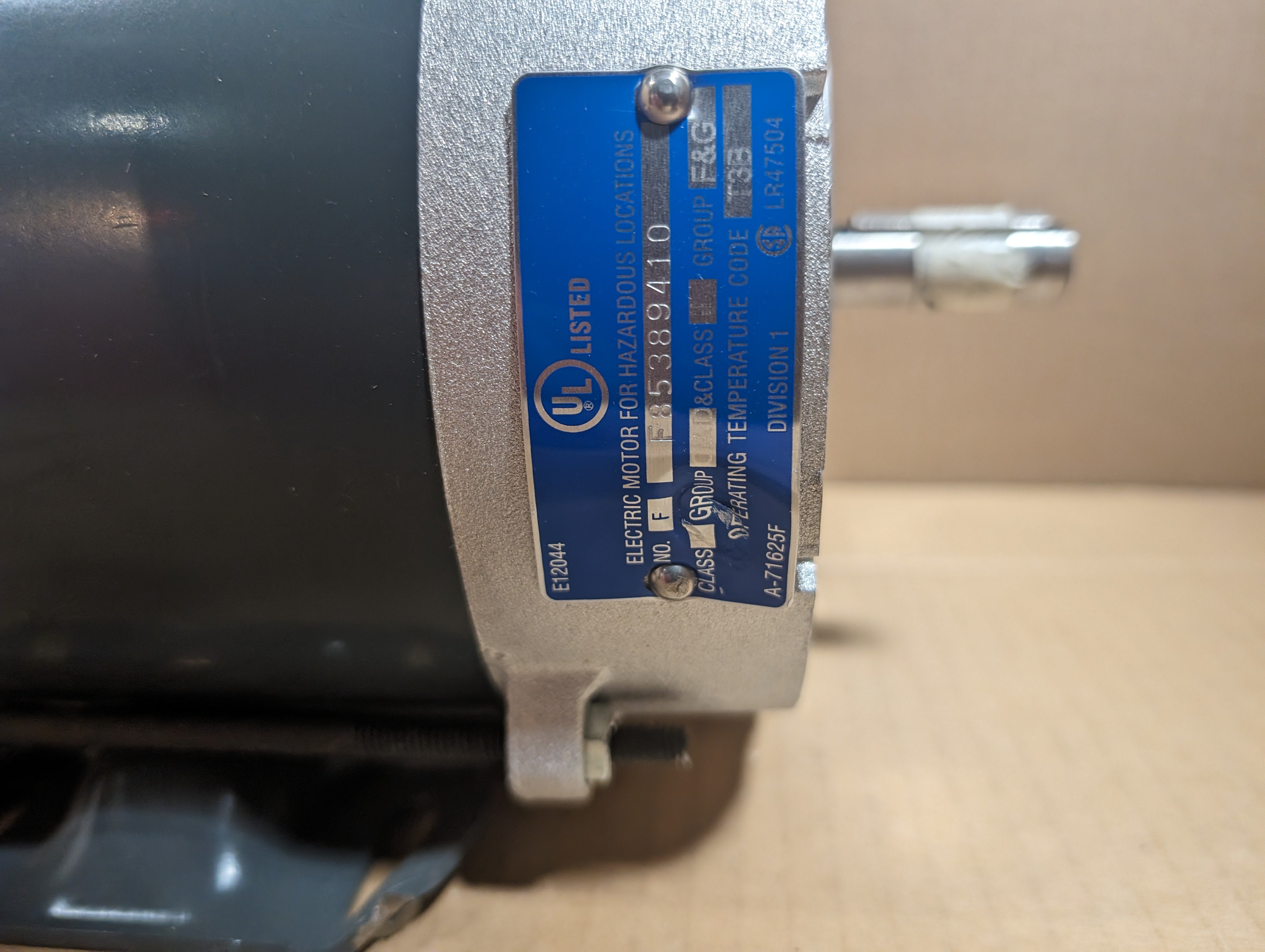

Group & Class Class I - Group C & D, Class II - Group F & G
IP Rating 54
Insulation Class B
KVA Code L
Manufacturer Upc Number 722856009944
Motor Category Explosion Proof / Hazardous Location Brake Motor, Explosion Proof / Hazardous Location Brake Motor
Motor Horsepower 3/4 hp
Motor Length Less Shaft 7.31 in
Motor Orientation Horizontal
Motor Phase 1 ph, 1 ph
Motor Poles 4
Motor Supply Voltage 115/208-230 V
Mounting Type Rigid Base
NEMA Design Class NO DESIGN CODE
Opposite Drive End Bearing Size Ball
Opposite Drive End Bearing Type 6203
Service Factor 1.00
Shaft Diameter 0.6250 in
Shaft Rotation Selective Counterclockwise
Shaft Type NEMA 56
Standards Met CSA
Starting Method Across The Line
Synchronous Rpm 1800 rpm
Temperature Code T3B
Thermal Protection Automatic
Type Of Bearing Ball
Weight 34 lbs
kW 0.56 kW
Enclosure Type EPFC (Explosion Proof Fan Cooled)
Frame Size 56C
