Description

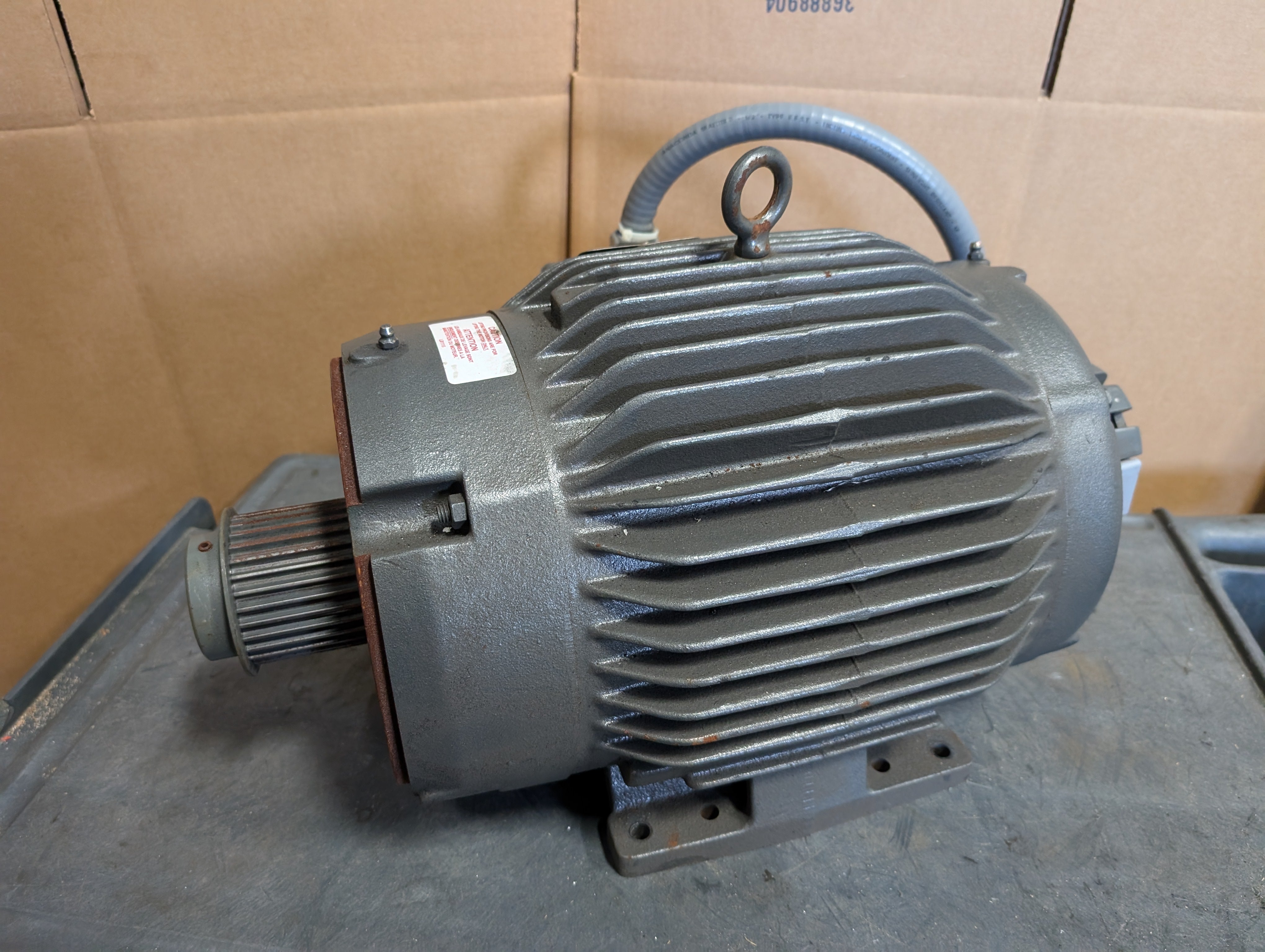

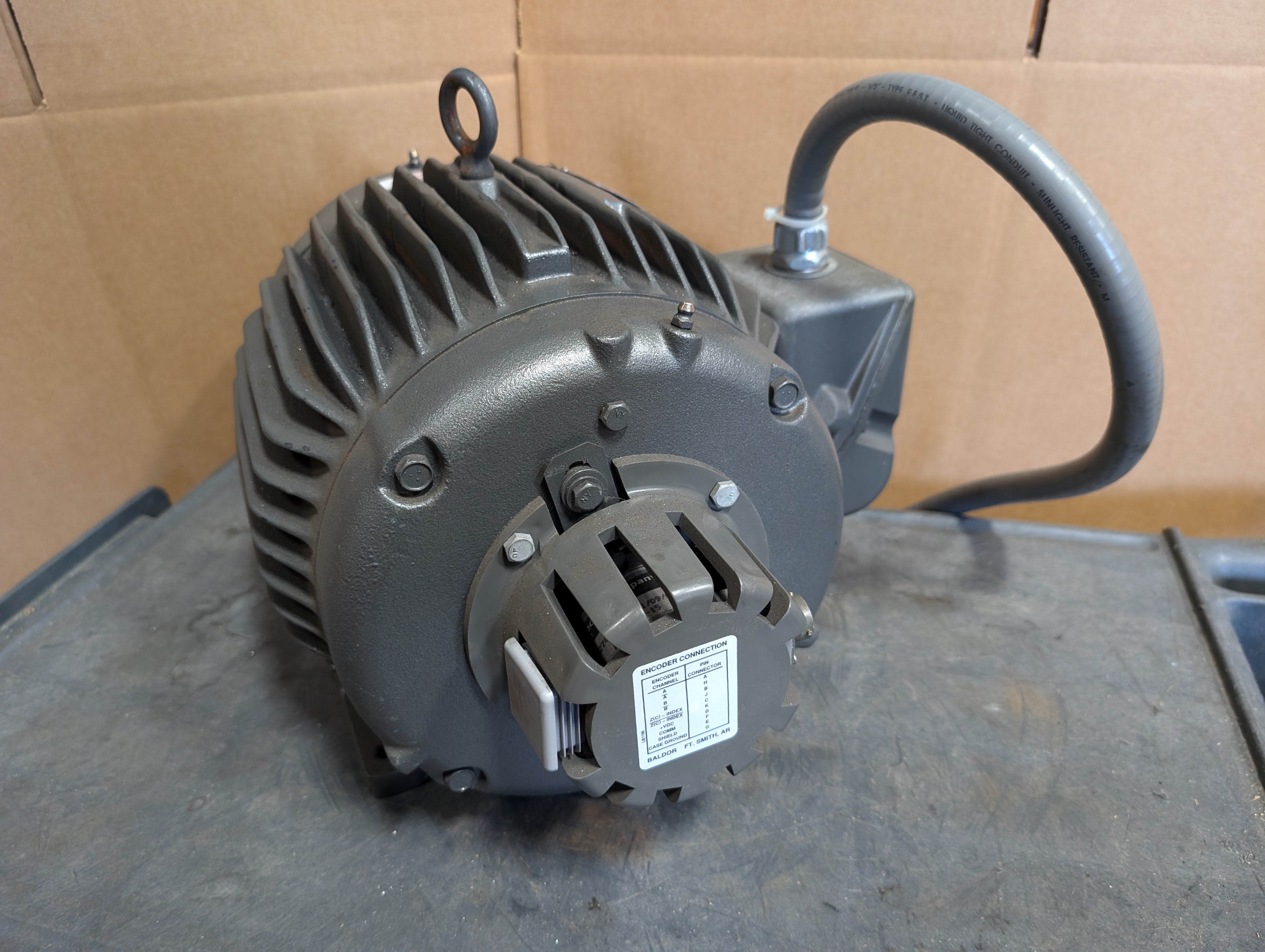

BALDOR 5HP Vector Motor is designed for use with Test stands, material handling, packaging equipment, printing presses, etc.
Applications requiring adjustable speed operation with full torque from zero to base speed and constant horsepower to maximum speed.
Used Working Pull
Mfg Specs:
| Weight | 167 lbs |
| Opposite End Bearing Size | 6206 |
| Dimension C | 20.4 in |
Product Details
| Drive End Flange | C-Face |
| Motor RPM 60 Hertz | 1770 rpm |
| Mounting Location | Rigid |
| Phase | 3 |
| Enclosure | TENV |
| Service Factor | 1 |
| Bearing Drive End | 6307 |
| Rotor-Inertia | 0.84 |
| Brand | Baldor-Reliance |
| Max RPM | 6000 rpm |
| RPM | 1770 rpm |
| Is_Motor | Yes |
| Insulation Class | H |
| Horsepower | 5 HP |
| Frame | 213TC |
| Hertz | 60 Hz |
| Design Code | B |
| Enclosure Type | Totally Enclosed |
| Full Load Efficiency | 91 |
| Voltage | 230/460 V |
| Full Load Amps | 13.4/6.7 FLA |
| Magnetizing Current | 7/3.5 A |
| Slip Hertz | 0.83 Hz |
| Poles | 4 |
| RPM Range | 1701-1800 rpm |
| Ambient Temperature | 40 °C |
