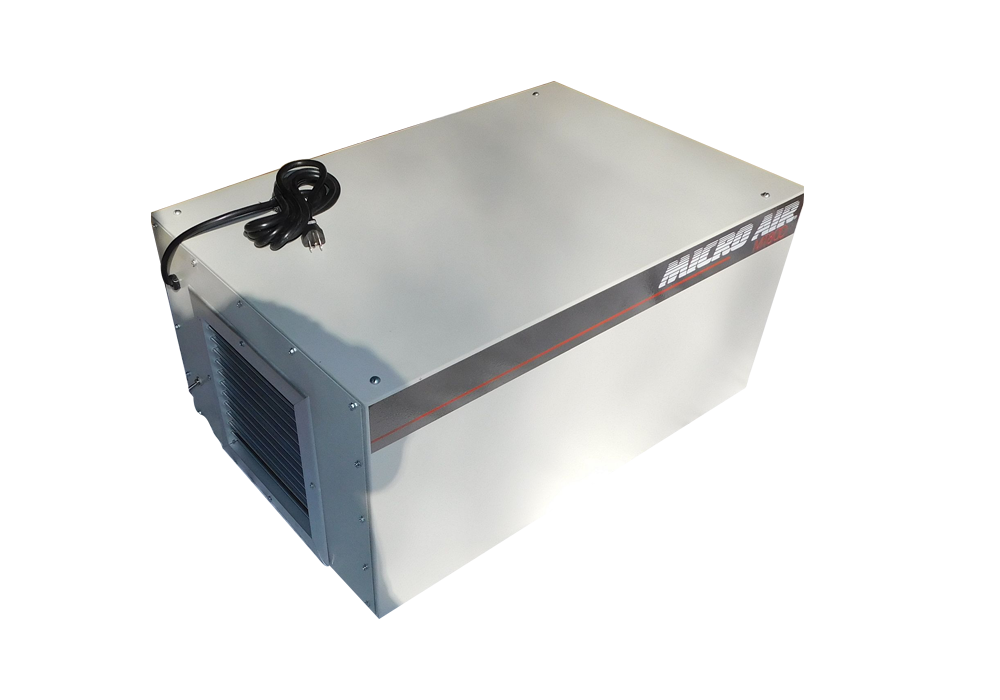

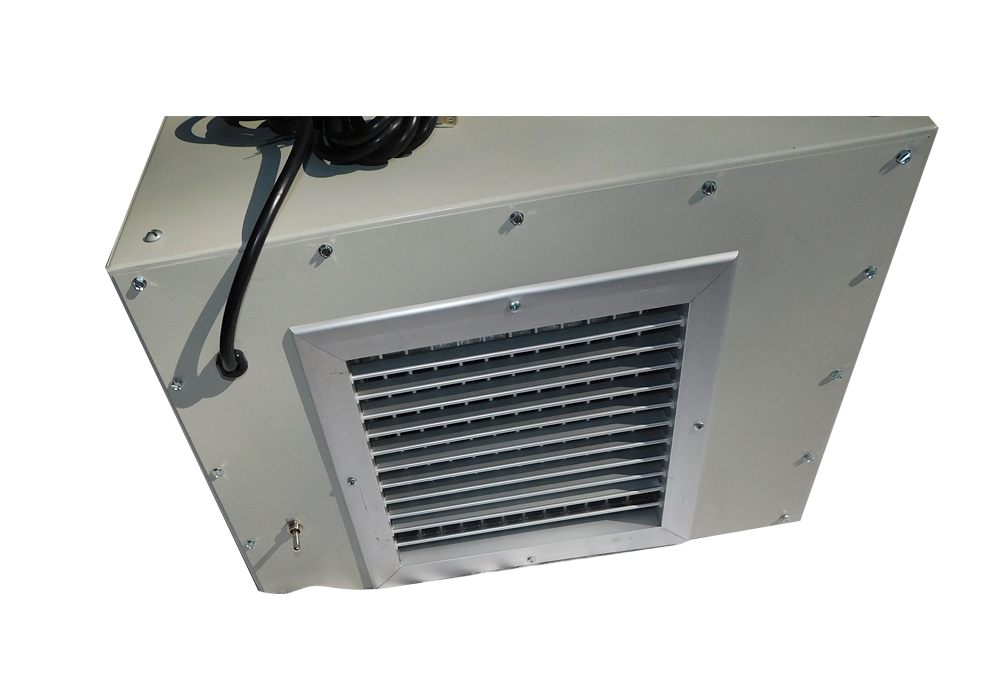

Micro Air MT-800 Dust, Smoke & Fume Filter

OVERALL DIMENSIONS: 14 1/2” H X 20” W X 30” L

WEIGHT: 76 LBS ACTUAL / 85 LBS SHIPPING

CABINET: 16 GAUGE WELDED GALVANEALED STEEL WITH EXTERIOR
SURFACES GROUND SMOOTH.

FINISH: INDUSTRIAL GRADE STORM GRAY TEXTURED BAKED ENAMEL,
INSIDE AND OUT.

PREFILTER: 14” X 20” X 3/4” FOAM PRE-FILTER

STANDARD FILTER: 12” X 18” X 12” 9 POCKET PLEATED 95% AVERAGE

EFFICIENCY BAG FILTER, 22.3 SQ. FT. OF FILTER MEDIA.

AFTERFILTER: 12 1/4” X 18 7/8” X 1” CHARCOAL. 1.1 LBS OF MEDIA.

FILTER ACCESS: FRONT LOADING.

MOTOR: VARIABLE SPEED, 1/8 HP, SINGLE PHASE, 120 VOLT, 60 HZ, BALL BEARING,

THERMALLY PROTECTED MOTOR. MAXIMUM 2.5 AMPS.

THROW: THROW DISTANCE 60’ ON HIGH WITH 100 FPM TERMINAL VELOCITY.

BLOWER: DIRECT DRIVE 9-7 BLOWER. 1170 RPM.

AIR VOLUME: 200 CFM ON LOW;800 CFM ON HIGH.

ELECTRICAL: 120 VOLT, 60 HZ, SINGLE PHASE, 10’ POWER CORD WITH
PLUG.

NOISE LEVEL: 54 DBA ON HIGH, 50 DBA ON LOW, MEASURED AT 6’ FROM
EXHAUST GRILLE.

CONTROLS: VARIABLE SPEED CONTROL WITH POWER ON/OFF LIGHT.

SN: 55676

New in Distressed Factory Box
