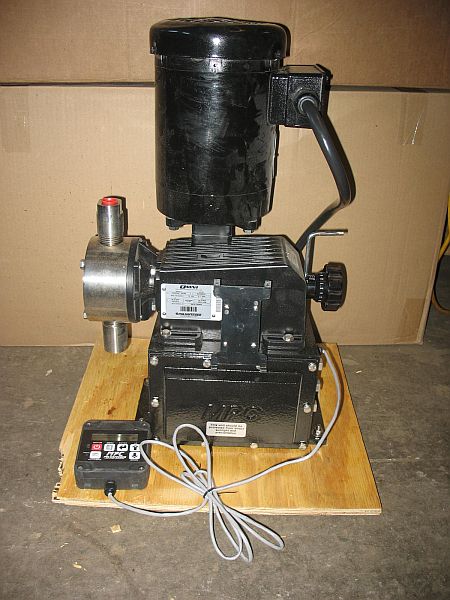

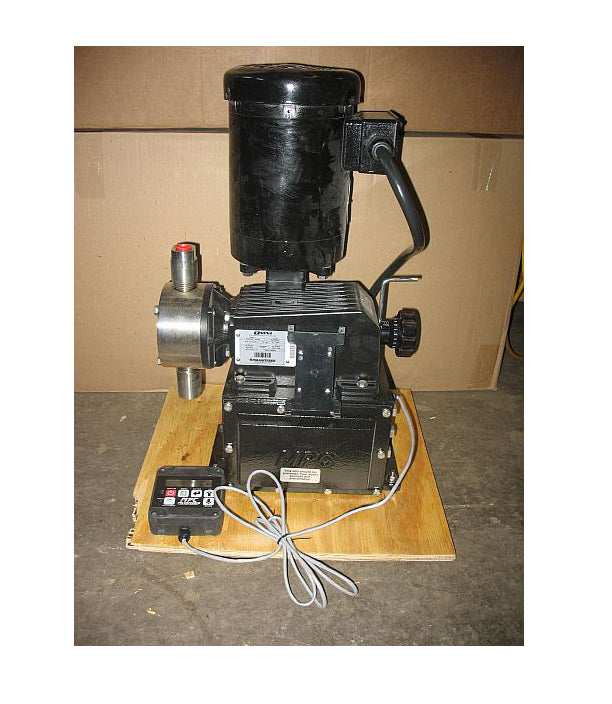

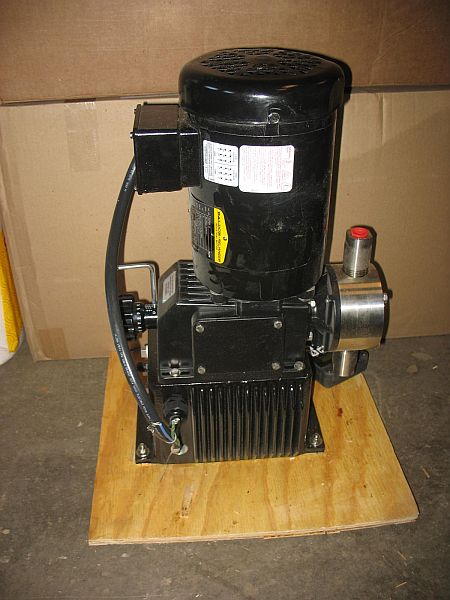

The OMNI Series is designed to be an economical, compact, rugged, simple, and reliable diaphragm metering pump. It features an industrial design to work in just about any application. OMNI series pumps are a reliable alternative for the customer looking for a simple and compact diaphragm metering pump. These reliable metering pumps are designed to perform in the widest range of chemical dosing applications.
0 - 32.3 GPH (gallons per hour).
Output rated at 75 PSI (5.1 BAR) maximum injection pressure, viscosities up to 1000 centipoises.
Stroke length adjustment from 0 to 100%, 0-88 Strokes per Minute.
Accuracy +/- 2% of flow, temperatures to 65C.

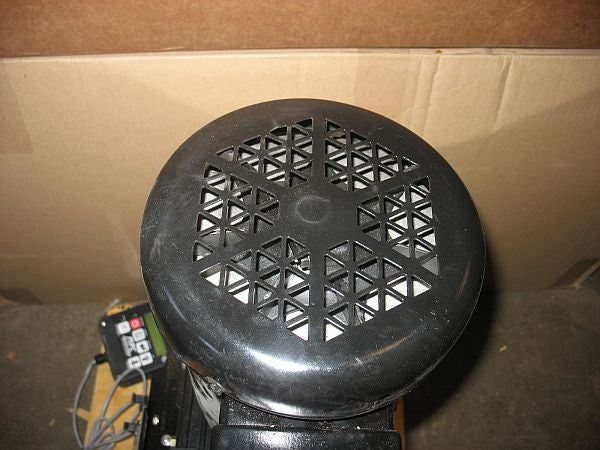

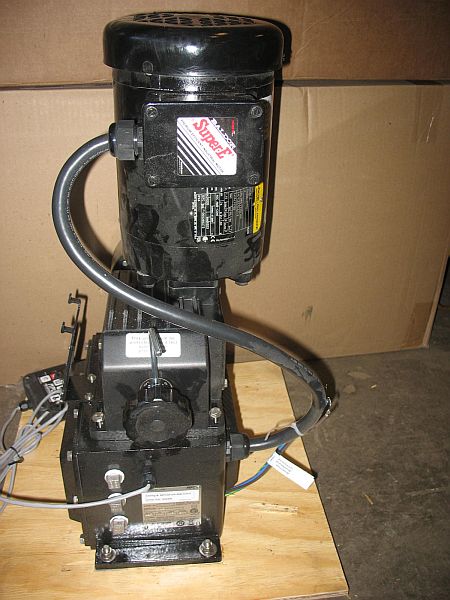

Motor: MPC with NEMA 56C Frame

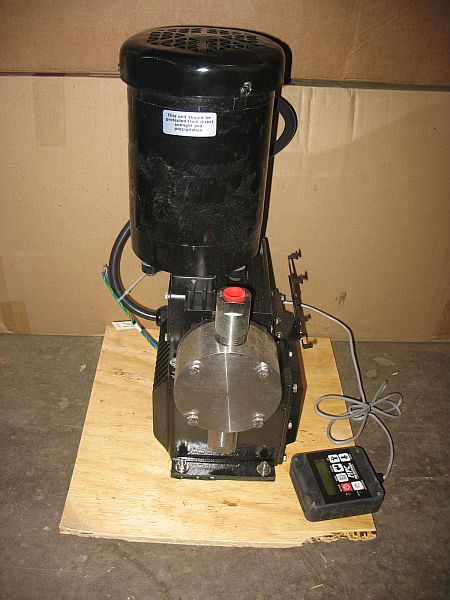

Wet End Materials: 316SS Liquid end - PTFE Diaphragm and PTFE O-rings - 316ss Ball Valves
Connections: 1/2" NPT female
Controls: MPC Controller - IP56 & NEMA 4X rated with Pump Mounted Keypad (with standard 6 feet of cable).
Input Voltage: 110-115V 50/60Hz ETL (UL & CSA).

Mfg: Pulsafeeder
Part # Missing Wiring Box Cover & Motor End Cover Missing Wiring Box Cover & Motor End Cover
Current New Price $3,680

New Unused not in factory Box, Missing Wiring Box Cover & Motor End Cover
