Description

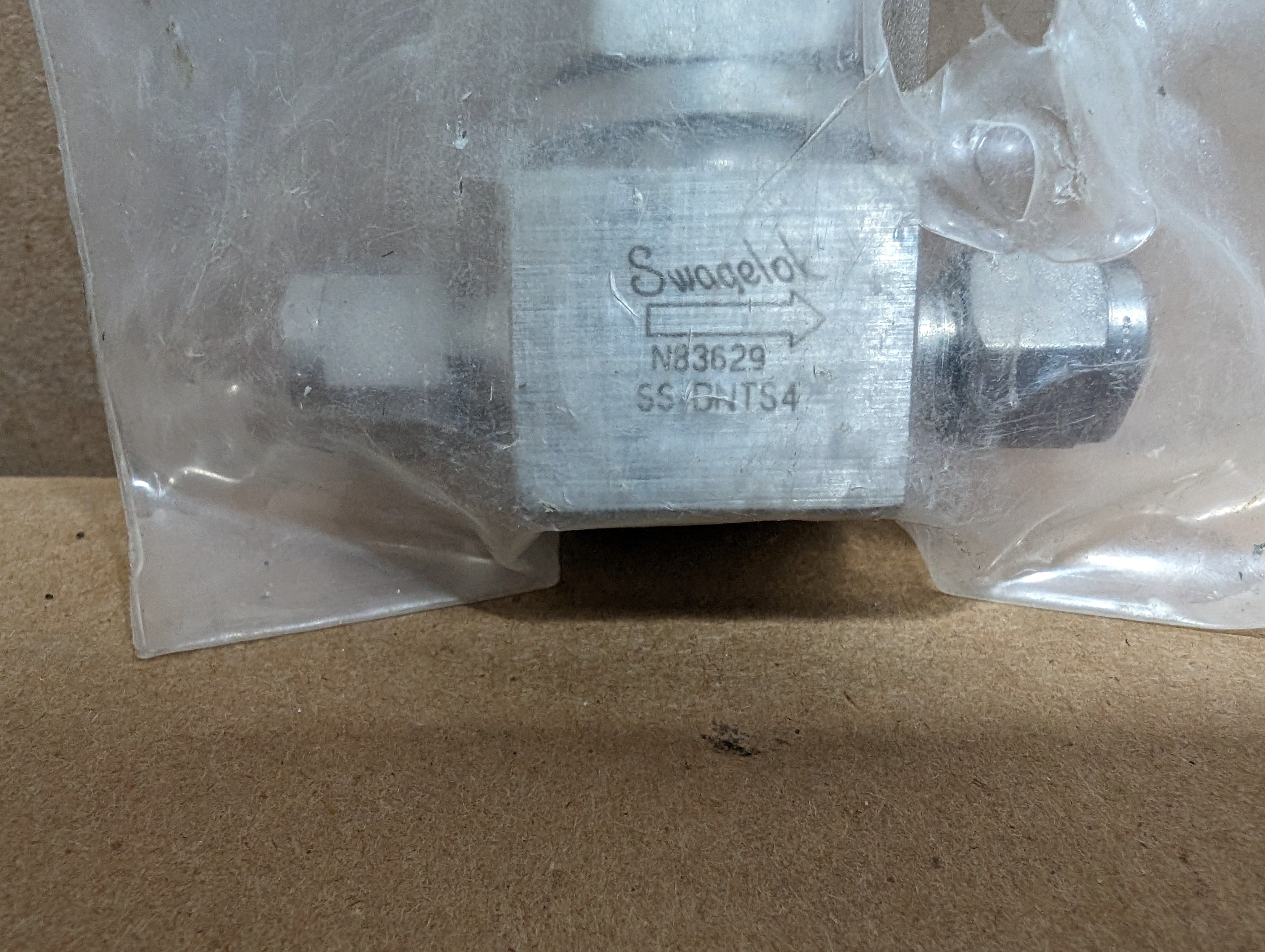

Swagelok SS-BNTS4 316L High-Purity Bellows-Sealed Valve, 1/4"
New in factory bag with hole in bag
| SPECIFICATION SUMMARY | |
| Actuator Type | Manual |
| Body Material | 316L Var Stainless Steel |
| Body Type | Straight |
| Flow Pattern | Straight (2-way) |
| Series | BN4 Series |
| Service Class | General |
| End Connection 1 Size | 1/4 in |
| End Connection 1 Type | Swagelok® tube fitting |
| End Connection 2 Size | 1/4 in |
| End Connection 2 Type | Swagelok® tube fitting |
| Handle Color | Black |
| Handle Style | Toggle |
| Bellows Material | 321 Stainless Steel |
| Body Seal | None |
| Cleaning | Swagelok SC-11 |
| Gasket | None |
| ID Tag | No |
| Stem Type | Conical |
| Surface Finish | Ra 20 µin |
| Testing | Helium leak testing according to SCS-00020 |
| Stem Tip Material | PCTFE |
| Max Temperature Pressure Rating | 200°F @ 100 PSIG /93°C @ 6.8 BAR |
| Room Temperature Pressure Rating | 100 PSIG @ 100°F /6.8 @ BAR 37°C |
